Black rubber coating slitting roller For Slitting Machine

Slitter Nip Roller Basis Information

Lay On Rubber Roller and Nip Rubber Roller are used in several high speed Slitters like Flexible Printing Films and Big Extrusion Line. It is necessary to have a good quality Rubber Roller.

CFRP Contact Roller Features

CFRP Contact Roller For BOPP line is a specialized roller used in winding processes. It is made from carbon fiber-reinforced polymer (CFRP) and offers several advantages over traditional steel Rollers.

1. Improved Stability: Carbon Fiber Contact Roller For Winding have low inertial forces, which allows them to maintain stability even at higher speeds compared to steel or aluminum rollers
2. Higher Speeds: Due to their low inertial forces, carbon fiber rollers can reach higher speeds, resulting in a more efficient rolling process.
3. Reduced Stresses: Carbon Fiber Contact Roller For Winding reduce stresses on Motors and Bearings, leading to increased life and efficiency.
4. Light weight: Carbon Fiber Contact Roller For Winding are significantly lighter than steel rollers, reducing handling and safety issues during changeovers.
5. Energy Efficiency: The lightweight nature of carbon fiber rollers reduces energy consumption.
6. Faster Acceleration: Carbon Fiber Contact Roller For Winding can speed up significantly faster than steel rollers.

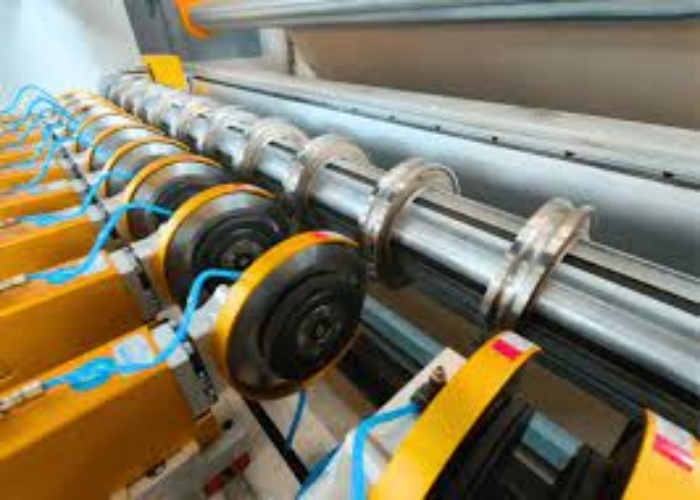

The slitter nip roller is the main auxiliary roller of the slitting press of the plastic film, which is mainly used for the tight roll when the slitting machine slitting film, which can be stable and high-speed winding, the end face is more flat during production, and the twill of the film surface is reduced.

The slitter nip roller is used for various high-speed slitter machine, the core of the roller is mainly made of carbon fiber, glass fiber composite material and aluminum tube, and the surface is covered with EPDM, PU and other rubber. It can be processed according to user requirements. We can also process spiral grooves and other grooves according to user requirements.

CFRP Carbon Fiber Slitter Roller Parameter

Shell Construction: Single-shell construction with CFRP-tube

Shrinked and welded disks and journals from S355 joined by adhesive in tube
Surface: Black EPDM coated, thickness 14-16mm, Roughness: Ra0.4μm
Out of roundness ≤0.05mm
Dynamic balancing G2.5 up to line max. speed
