Fast Heat Exchange Rate Flame Treater Roller Double Shell Structure Bopp Bopet

Name: Fast Heat Exchange Rate Flame Treater Roller Double Shell Structure Bopp Bopet
Brand: SHIJIAZHUANG HUATAO IMPORT AND EXPORT TRADE CO., LTD.
SKU: HT-FL01
Price: 35,000.00 USD
Availability: InStock

Brand Name:	HUATAO
Model Number:	HT-FL01
MOQ:	1PCS
Price:	20000USD/pc-50000USD/pc
Delivery Time:	4-6 MONTH
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO CE

Product Name:

Fast Heat Exchange Rate Flame Treater Roller Double Shell Structure Bopp Bopet

Key Words:

Flame Roller, Flame Treater Roller

Out Tube Material:

Nickel-chromium Alloy Steel

Flow System:

Cooling Channel Designed For High Heat Exchange Efficiency, Single-side Water Inlet

Inner Tube Material:

Q355B

Cylindricality:

0.1mm

Runout:

0.1mm

Dynamic Balance:

G2.5 Level Maximum Linear Speed 450m/min

Packaging Details:

SOLID WOODEN CASE

Supply Ability:

100 Pcs/Month

Highlight:

Double Shell Flame Treater Roller

Flame Roller

Flame Treater Roller

Product Description

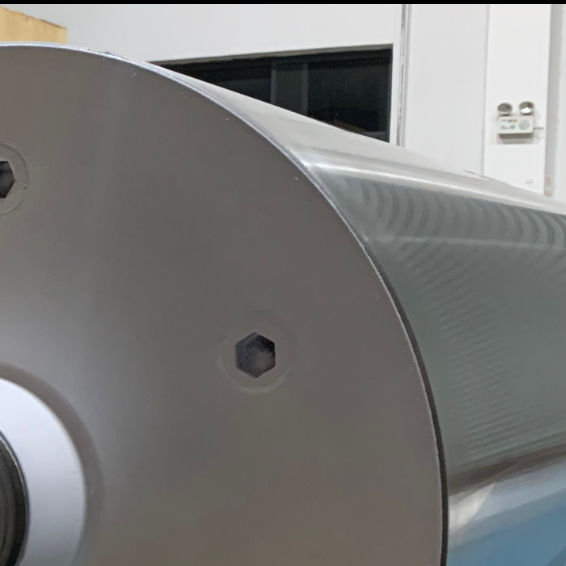

Fast Heat Exchange Rate Flame Treater Roller Double Shell Structure Bopp Bopet

Introduction of Flame Treater Roller :

The flame treatment roller serves as a key component of the flame treatment machine within the traction section of biaxial oriented film production lines. Its primary function is to enhance the surface adhesiveness of the film. As the film passes over the flame treatment roller, its surface adhesion properties are improved, which facilitates subsequent converting processes such as printing, coating, and lamination.

This treatment roller is efficiently cooled by circulating water, creating a "cold side" for the film as it undergoes flame treatment. The water-cooling mechanism prevents excessive heat buildup, ensuring the film maintains its structural integrity while the flame modifies its surface chemistry. This dual-function design—combining flame activation with controlled cooling—optimizes the film's surface energy for better ink and coating adhesion, making it critical for high-quality downstream processing.

Technical Data sheet of Flame Treater roller :

Flow system	Cooling channel designed for high heat exchange efficiency, single-side water inlet
Out tube material	nickel-chromium alloy steel
inner tube material	Q355B
Drive end	Q355B forged flange, high-strength steel 42CrMo forged shaft head
Operation end	Q355B material forged flange/shaft head, interference assembly and welding
Surface coating treatment	Anti-corrosion and high-temperature resistant surface
Package	Anti-collision
Runout	0.1mm
cylindricality	0.1mm
Dynamic balance	G2.5 level maximum linear speed 450m/min

Design factor of Flame Treater Roller :

The roll’s surface temperature is a fundamental parameter in the uniformity the treated surface

Poor attention to this component can cause:

Irregular temperature along the roller, Too great a difference between the roll surface and cooling water temperatures

Water flow that is not constant with respect to the roller rotation ,Difficulty in obtaining high heat exchange coefficients

We can solved these problems by designing treatment rolls with an active radial system in which the distribution of cooling water in the input and outlet positions is able to almost completely compensate the centrifugal force. Moreover, a labyrinth system guarantees the uniformity of the surface temperature along the entire roll surface.

Fast Heat Exchange Rate Flame Treater Roller Double Shell Structure Bopp Bopet 0

About us

Huatao Group was founded in 2008. We are a professional and leading supplier of various rollers for paper, corrugated board, rubber & plastic industry ,nonwoven fabric industries over 15 years of experience.

Paper Industry: forming roller, vacuum couch roller, dandy roller ,Breast Roller, press roller,stone roller, rubber roller,dryer cylinder ,size press roller, calender roller, pope reel roller ,spreader roller ,embossing roller.

Plastic & Rubber: chill roller, MDO Preheating Roller, MDO nip roller, MDO stretching Roller, cooling roller, corona treater roller, Corona treatment nip roller, flame roller, carbon fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core , coating drum, cooling drum, spreader roller, anilox roller,calender roller, embossing roller .

Nonwoven Fabric :cylinder roller, doffer roller ,carbon fiber guide roller , embossing roller, cooling roller ,spreader roller

With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry and our products have been exported to more than 96 countries and have a good reputation.

Huatao understands that each customer may have different requirements, which cannot meet from one factory, but we can meet, we are also familiar with domestic factory advantages with matching superior quality and help customer not walk bend road. We pursue:each customer is buying and using HUATAO products with a rest assured heart and service is never en

Fast Heat Exchange Rate Flame Treater Roller Double Shell Structure Bopp Bopet 1
