Cooling Roller
Created with Pixso. 220KV Resistant Corona Roller Silicon Rubber 4mm Bopp

220KV Resistant Corona Roller Silicon Rubber 4mm Bopp

Brand Name: HUATAO
Model Number: CORONA TREATMENT ROLLER
MOQ: 1 PC
Price: 20000USD/pc-50000USD/pc
Delivery Time: 5-8 Weeks
Payment Terms: L/C,T/T,Western Union
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Product Name:
220KV Resistant Corona Roller Silicon Rubber 4mm Bopp
Key Words:
Corona Treatment Roller, Corona Roller, Corona Treater Roller
Flow-System:
Flow Channels Between Inner And Outer Tube Separated With Welded Leading Spirals
Disc/Shaft:
Shrinked And Welded Shafts And Side Discs From Q345B
Shell:
Double-shell Construction
Hardness:
70-75 Shore A
Rubber Color:
White,grey And Red
Silicone Thickness:
4mm
Packaging Details:
Wooden Box
Supply Ability:
10 PCS/Month
Highlight:

220KV Corona Roller

,

Bopp Corona Roller

,

Corona Roller

Product Description

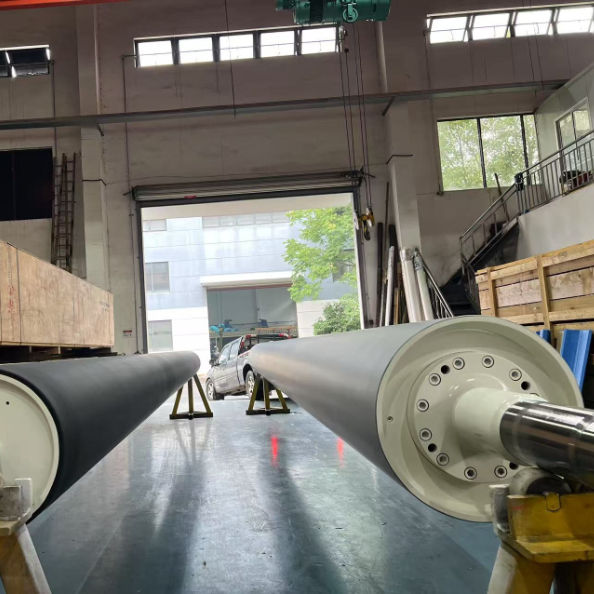

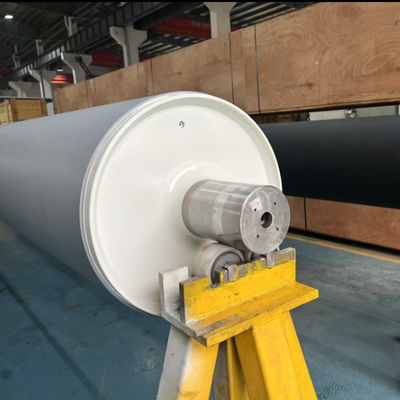

220KV Resistant Corona Roller Silicon Rubber 4mm Bopp



Corona  Roller Introduction:


Corona treatment roller serves as specialized equipment for corona treatment, typically constituted by components like corona electrodes, rollers, bearings, and transmission systems. Its core functionality lies in producing corona discharge under high-voltage conditions, enabling the surface of charged objects to undergo chemical reactions. This process realizes multiple purposes such as surface modification, coating application, sterilization, and disinfection.


Corona treatment rollers have extensive applications across diverse industries. These include printing, packaging, plastics processing, textile manufacturing, medical sectors, and food production. Such equipment plays a pivotal role in enhancing material surface properties and ensuring process efficiency in various industrial fields.


Corona Treatment Roller Maintenance Recommendations:


1. Clean the roller surface regularly, use detergent and soft cloth to clean the roller surface, remove dirt and residue on the surface
2. Check the bearings regularly to see if they are loose or worn
3. Lubricate regularly, add grease to the bearings regularly to ensure their normal operation


Corona Treatment Roller Technnical Data Sheet:


Shell construction One way Exit and Enter, Double-shell construction from Q345B
Shrinked and welded shafts Material Q345B
Flow-system: Channels between inner and outer tube separated with welded leading Spirals
Surface Silicone rubber coated, hardness approx. SHA70,
finished rubber layer thickness 4MM
Ra <1.6μm
Disks and shafts 2-layer painting RAL
Out of roundness <=0.1mm
cylindricity <=0.1mm
Dynamic balancing G2.5


220KV Resistant Corona Roller Silicon Rubber 4mm Bopp 0


About us


Huatao Group was founded in 2008. We are a professional and leading supplier of various rollers for paper, corrugated board, rubber & plastic industry ,nonwoven fabric industries over 15 years of experience.



Paper Industry: forming roller, vacuum couch roller, dandy roller ,Breast Roller, press roller,stone roller, rubber roller,dryer cylinder ,size press roller, calender roller, pope reel roller ,spreader roller ,embossing roller.



Plastic & Rubber: chill roller, MDO Preheating Roller, MDO nip roller, MDO stretching Roller, cooling roller, corona treater roller, Corona treatment nip roller, flame roller, carbon fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core , coating drum, cooling drum, spreader roller, anilox roller,calender roller, embossing roller .



Nonwoven Fabric :cylinder roller, doffer roller ,carbon fiber guide roller , embossing roller, cooling roller ,spreader roller


With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry and our products have been exported to more than 96 countries and have a good reputation.



Huatao understands that each customer may have different requirements, which cannot meet from one factory, but we can meet, we are also familiar with domestic factory advantages with matching superior quality and help customer not walk bend road. We pursue:each customer is buying and using HUATAO products with a rest assured heart and service is never end.
