| Brand Name: | HUATAO |
| Model Number: | HT |
| MOQ: | 1 |
| Price: | Negotiatable |
| Delivery Time: | 25 days |
| Payment Terms: | T/T,L/C,Western Union |

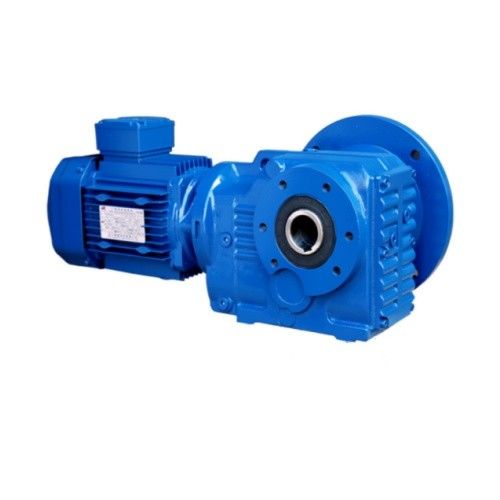

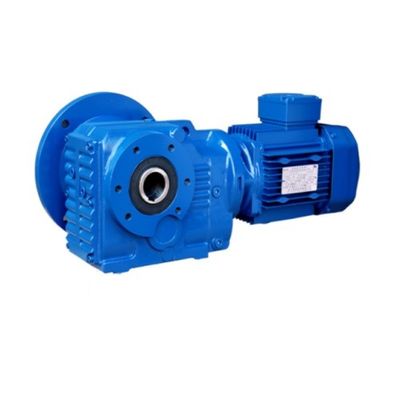

The Right Angle K Series Helical Bevel Gearmotor is an excellent choice for industries looking for high efficiency, durability, and versatility in their power transmission solutions.
| Output Type | Models |
|---|---|
| Solid shaft output type | K37 reducer, K47 reducer, K57 reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer |
| Solid shaft with flange output type | KF37 reducer, KF47 reducer, KF57 reducer, KF67 reducer, KF77 reducer, KF87 reducer, KF97 reducer, KF107 reducer, KF127 reducer, KF157 reducer, KF167 reducer |
| Hollow shaft output type | KA37 reducer, KA47 reducer, KA57 reducer, KA67 reducer, KA77 reducer, KA87 reducer, KA97 reducer, KA107 reducer, KA127 reducer, KA157 reducer, KA167 reducer |
| Hollow shaft with flange output type | KAF37 reducer, KAF47 reducer, KAF57 reducer, KAF67 reducer, KAF77 reducer, KAF87 reducer, KAF97 reducer, KAF107 reducer, KAF127 reducer, KAF157 reducer, KAF167 reducer |
| Specification | Details |
|---|---|
| Type | Helical Bevel Gearbox / Reducer |
| Model | K37~K187 |
| Mounting Position | Flange, hollow shaft, solid shaft |
| Efficiency | 94%~98%(depends on the transmission stage) |
| Material | Housing: HT250 high-strength cast iron Gear: 20CrMnTi |
| Surface hardness of gears | HRC58~62 |
| Input/output shaft material | 40Cr |
| Machining precision of gears | Accurate grinding, 6 grade |
| Warranty | 1 Year |
| Input Power | 0.09kw,0.18kw,1.1KW,1.5KW,2.2KW,3KW,4KW,5.5KW,7.5KW, 11Kw and so on. |
| Usages | Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing, Woodworking, Glass. |
| IEC Flange | IEC standard flange |
| Lubricant oil | Gear oil |
We can design nonstandard products according to the customer's drawing and sample.
speed reducer, gearbox, gear motor, pump, crusher
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers. Specializing in the production of reducers. Map sample processing business can be undertaken.
