| Brand Name: | HUATAO |
| Model Number: | HT |
| MOQ: | 1 |
| Price: | Negotiatable |
| Delivery Time: | 25 days |
| Payment Terms: | T/T,L/C,Western Union |

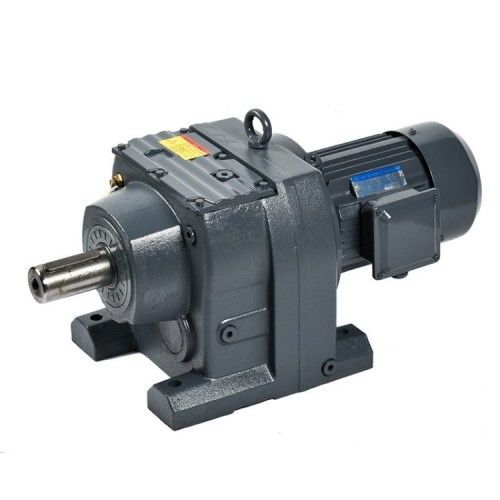

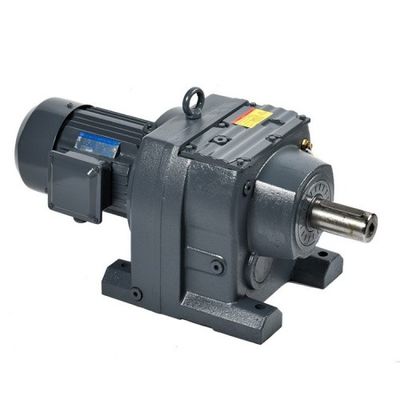

The R Series 50:1 Ratio Helical Gear Speed Reducer is designed for applications requiring precise speed control, including conveyors, mixers, cranes, hoists, and other industrial machinery.
| Attribute | Specification |
|---|---|
| Applicable Industries | Manufacturing, Mining, Food & Beverage, Construction, and more |
| Weight | 25 KG |
| Place of Origin | China |
| Warranty | 12 months |
| Customization | OEM, ODM, OBM supported |
| Brand | HUATAO |
| Color Options | Blue or Grey |
| Ratio Range | 1.3-289 |
| Input Power | 0.12KW-45KW |
| Output Torque Range | 3.5-23200N.m |
| Available Sizes | R17 to R167 series |
| Assembly Types | R, RF, RX, RXF, RM |
| Housing Material | Iron |
| Gear Material | 45# Steel |
| Output Type | Model Numbers |
|---|---|
| Solid shaft output | RX37, RX57, RX67, RX77, RX87, RX97, RX107, RX127 |
| Solid shaft with flange | RXF37, RXF57, RXF67, RXF77, RXF87, RXF97, RXF107, RXF127 |
| Hollow shaft output | R37, R47, R57, R67, R77, R87, R97, R107, R137, R147, R167 |
| Hollow shaft with flange | RF37, RF47, RF57, RF67, RF77, RF87, RF97, RF107, RF137, RF147, RF167 |
