L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key for 90 Degree Angle Transmission and Custom Gear Ratios

L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key for 90 Degree Angle Transmission and Custom Gear Ratios

Brand Name:	HUATAO
Model Number:	HT
MOQ:	1
Price:	Negotiatable
Delivery Time:	25 days
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, TUV

Product Name:

L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key

Key Words:

Spiral Bevel Gearbox

Application:

Industrial Machinery

Color:

Basis On Customer Request

Customized:

Available

Package:

Plywood Case

HS Code:

8483409000

Production Capacity:

5000PCS/Per Month

Packaging Details:

Plywood Case

Supply Ability:

5000PCS/Per Month

Highlight:

Spiral Bevel angular gearbox

L Series angular gearbox

Solid Shaft angular gearbox

Product Description

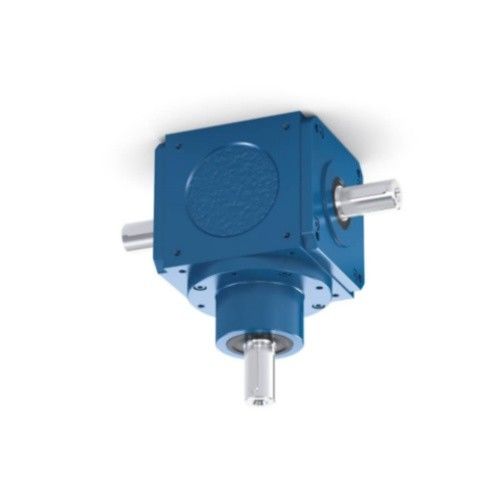

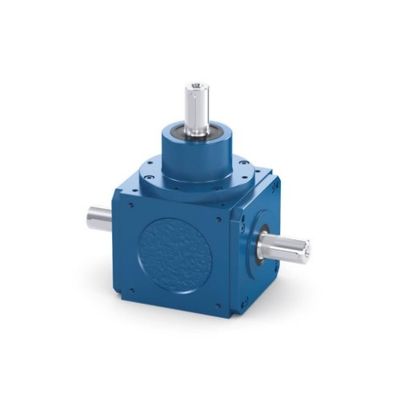

L Series Spiral Bevel Angular Gearbox With Solid Shaft With Key

The L Series Spiral Bevel Angular Gearbox with Solid Shaft and Key offers superior efficiency and speed compared to traditional worm-driven screw jacks, making it ideal for applications requiring rapid and reliable lifting or positioning.

Key Features

Available gear ratios: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1 (custom ratios available)
Drive shaft configurations: 1 way, 2 way, 3 way, 4 way
Maximum permissible speed: 1500rpm
Maximum input torque: 5713N.m
Operating temperature range: -40°C to +80°C (custom ranges available)
90° angle transmission for directional changes
Available with hollow shaft, solid shaft, or flange input

Technical Specifications

Parameter	Symbol	Unit	Value Range
Ratios	i	[-]	1.0 - 6.0
Max. acceleration torque	T2maxzul	[Nm]	27 - 15300
Nominal torque on output shaft	T2Nzul	[Nm]	10 - 5700
Max. backlash	j	[arcmin]	10, 7, [4]
Max. input speed	N1maxzul	[min-1]	up to 4500

Primary Applications

Crane systems
Stage equipment
Paper manufacturing
Non-ferrous metal processing
Food industry applications

Packaging

Frequently Asked Questions

Can you customize it according to our requirements?

We can design non-standard products according to customer specifications, drawings, and samples.

What's your product range?

Our product range includes speed reducers, gearboxes, gear motors, pumps, and crushers.

Why should we buy from you?

With over 20 years of production experience, we offer: professional engineering expertise, advanced production technology, skilled workforce, and specialization in reducer production. We can undertake map sample processing projects.
