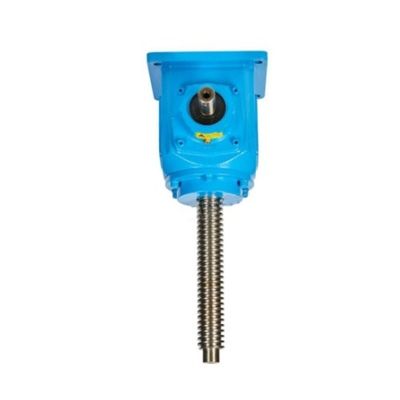

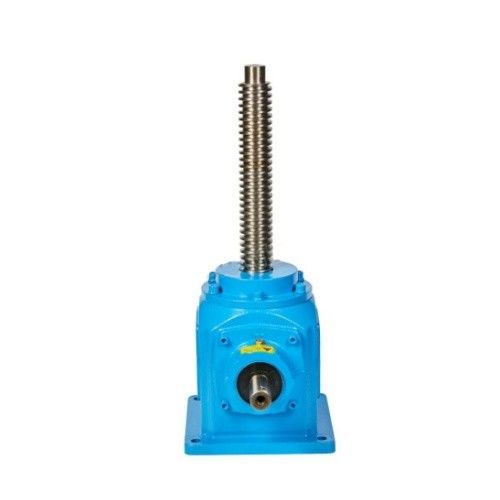

Lightweight Housing Bevel Gear Screw Jacks For Industrial Machinery Worm Screw Jacks

Lightweight Housing Bevel Gear Screw Jacks For Industrial Machinery Worm Screw Jacks

Brand Name:	HUATAO
Model Number:	HT
MOQ:	1
Price:	Negotiatable
Delivery Time:	25 days
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, TUV

Product Name:

Bevel Gear Screw Jacks

Key Words:

Bevel Gear Jacks

Application:

Industrial Machinery

Color:

Basis On Customer Request

Customized:

Available

Package:

Plywood Case

HS Code:

8483409000

Production Capacity:

5000PCS/Per Month

Packaging Details:

Plywood Case

Supply Ability:

5000PCS/Per Month

Highlight:

machinery worm screw jacks

lightweight worm screw jacks

lightweight bevel gear screw jacks

Product Description

Bevel Gear Screw Jacks

Bevel gear screw jacks are more efficient and faster than traditional worm-driven screw jacks, making them ideal for applications requiring quick and reliable lifting or positioning.

Features of Bevel Gear Screw Jack

● High precision

● High-efficiency reduction

● Grease lubrication

● Lightweight housing

● Large input shaft

Technical Data of Bevel Gear Screw Jacks

Model	L-2.5T	L-5T	L-10T	L-15T	L-20T	L-25T
Max. Static Load ( KN )	25	50	100	150	200	250
Lifting Screw ( mm )	Tr30x6	Tr40x7	Tr58x12	Tr58x12	Tr65x12	Tr90x16
Gear Ratio-H	1:1	1:1	1:1	1:1	1:1	1.5:1
Travel length ( mm ) per turn of worm shaft-H	6	7	12	12	12	10.7
Working Efficiency (%)-H	26	25	26	26	25	22
Gear Ratio-L	2:1	2:1	2:1	2:1	2:1	2.5:1
Travel length ( mm ) per turn of worm shaft-L	3	3.5	6	6	6	6.4
Working Efficiency (%)-H	26	25	26	26	25	22
Max. Permissible stroke ( mm )	1500	2000	2500	2500	3000	3500
Max. Stroke(mm) in Max. Compression load ( Unguided)	200	385	400	500	600	850
Max. Stroke(mm) in Max. Compression load ( guided)	400	770	800	1000	1200	1700
Max. Permissible torque(N.m) of worm shaft	H:92 L:46	H:232 L:116	H:730 L:365	H:1095 L:548	H:1528 L:764	H:2020 L:1212
Weight without stroke ( Kg )	42	78	112	112	148	265
Weight per 100mm screw and protective tube( Kg )	0.45	0.82	1.68	1.68	2.1	4.15

Main Application of Bevel Gear Screw Jacks

Crane
Stage
Paper
Non-ferrous metal
Food

Packaging:

FAQ:

1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.

2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher

3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
