ZKT Series Reinforced Single Screw Extruder Gear Box High Precision And Efficiency

ZKT Series Reinforced Single Screw Extruder Gear Box High Precision And Efficiency

Brand Name:	HUATAO
Model Number:	HT
MOQ:	1
Price:	Negotiatable
Delivery Time:	25 days
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, TUV

Product Name:

ZKT Series Reinforced Single Screw Extruder Gearbox

Key Words:

ZKT Series Single Screw Extruder Gearbox

Application:

Industrial Machinery

Color:

Basis On Customer Request

Customized:

Available

Package:

Plywood Case

HS Code:

8483409000

Production Capacity:

5000PCS/Per Month

Packaging Details:

Plywood Case

Supply Ability:

5000PCS/Per Month

Highlight:

single screw extruder gear box

reinforced extruder gearbox

reinforced extruder gear box

Product Description

ZKT Series Reinforced Single Screw Extruder Gearbox

The ZKT Series Reinforced Single Screw Extruder Gearbox is engineered to handle high torque loads, making it suitable for demanding extrusion processes.
ZKT Series Reinforced Single Screw Extruder Gearbox features a reinforced structure that improves its strength and reliability, ensuring it can withstand the rigours of continuous operation.

Feature of ZKT Series Reinforced Single Screw Extruder Gearbox

High Precision and Efficiency
Robust Construction
Thrust Bearing Design
Compact and Integrated Design
Low Noise and Temperature Rise

Advantages of ZKT Series Reinforced Single Screw Extruder Gearbox

Extended Lifespan
Versatile Applications
Cost-Effective Solution

Available Models of ZKT Series Reinforced Single Screw Extruder Gearbox

ZLYJ

112

ZLYJ

133

ZLYJ

146

ZLYJ

173

ZLYJ

180

ZLYJ

200

ZLYJ

225

ZLYJ

250

ZLYJ

280

ZLY

J315

ZLYJ

330

ZLYJ

375

ZLYJ

395

ZLYJ

420

ZLYJ

450

Ratio	Revolution speed (rpm)		P1(KW) T2(kNm) Rated Power P1(KW)and Rated output Torque T2(kNm)
			Gearbox Specification
	n1 Input	n2 Output	112		133		146		173		180		200		225		250		280		315		330		375		395		420		450
i			P1	T2	P1	T2	P1	T2	P1	T2	P1	T2	P1	T2	P1	T2	P1	T2	P1	T2	P1	T2	P1	T2	P1	T2	P1	T2	P1	T2	P1	T2
8	1500	188	12.8	0.65	20.8	1.06	28.3	1.44	46.9	2.39	49.2	2.47	73	3.7	100	5.09	139	7.07	188	9.56	271	13.8	340	17.3	436	22.2	470.8	23.9	607	30.9	748	38.1
	1000	125	8.6	0.66	14.4	1.1	19.4	1.48	32.7	2.5	34.3	2.59	50	3.85	69	5.29	96	7.37	130	9.93	188	14.4	236	18	302	23.1	326	24.9	420	32.1	520	39.7
	750	94	6.8	0.69	11.2	1.14	14.9	1.52	24.6	2.51	25.8	2.59	39	3.95	53	5.42	74	7.58	100	10.2	145	14.8	182	18.5	233	23.7	251	25.5	324	33	400	40.7
10	1500	150	10.4	0.66	17	1.08	22.5	1.43	37.9	2.41	39.8	2.53	60	3.8	82	5.2	114	7.23	153	9.75	221	14.1	278	17.7	357	22.7	385.6	24.5	495	31.5	613	39
	1000	100	7.2	0.69	11.7	1.12	15.5	1.48	26	2.48	27.3	2.61	41	3.94	57	5.42	79	7.53	107	10.2	154	14.7	193	18.4	247	23.6	266.7	25.5	343	32.8	424	40.5
	750	75	5.6	0.71	9	1.15	11.8	1.5	19.9	2.54	20.89	2.67	32	4.08	44	5.55	61	7.74	82	10.4	119	15.1	148	18.9	190	24.2	205.2	26.1	265	33.7	327	41.6
12.5	1500	120	8.4	0.67	13.6	1.08	18.1	1.44	29.7	2.36	31.2	2.48	47	3.71	66	5.25	92	7.29	124	9.9	180	14.3	225	17.9	289	23	312	24.8	402	32	496	39.5
	1000	80	5.6	0.67	9.5	1.13	12.4	1.48	20.3	2.42	21.3	2.52	32	3.87	46	5.44	64	7.59	86	10.3	125	14.9	156	18.6	200	23.9	216	25.8	278	33.2	343	41
	750	60	4.4	0.7	7.2	1.15	9.5	1.51	15.6	2.49	16.4	2.61	25	4.01	35	5.6	49	7.77	67	10.6	96	15.3	120	19.1	154	24.5	166.3	26.5	214	34.1	265	42.2
14	1500	107			12.2	1.09	16.2	1.44	26.4	2.35	27.7	2.47	42	3.74	59	5.28	82	7.35	112	9.95	162	14.4	202	18	259	23.1	279.7	25	361	32.2	447	39.8
	1000	71			8.5	1.14	11.1	1.49	18.2	2.43	19.3	2.59	29	3.9	41	5.46	57	7.59	77	10.3	112	15	140	18.7	180	24	194.4	26.2	250	33.4	309	41.3
	750	54			6.4	1.14	8.5	1.52	13.9	2.48	14.6	2.58	22	3.99	32	5.63	44	7.84	59	10.6	86	15.4	108	19.3	139	24.7	150.1	28.1	192	34.3	238	42.4
16	1500	94			10.6	1.08	14.2	1.45	24.5	2.5	26.1	2.65	39	3.99	53	5.42	74	7.54	100	10.2	145	14.8	182	18.5	233	23.7	251.6	25.6	324	33	400	40.7
	1000	63			7.3	1.11	9.8	1.49	16.8	2.57	17.8	2.7	27	4.16	37	5.62	51	7.82	69	10.6	100	15.3	126	19.2	161	24.6	173.8	26.3	224	34.2	277	42.4
	750	47			5.7	1.16	7.7	1.56	13.1	2.66	13.9	2.82	21	4.32	28	5.79	40	8.07	54	10.9	77	15.7	97	19.7	124	25.3	133.9	27.2	173	35.2	213	43.4
18	1500	83			9.5	1.09	12.8	1.47	21.5	2.46	22.6	2.6	34	3.94	46	5.27	64	7.38	90	10.3	130	14.9	163	18.7	209	24	225.7	26.1	291	33.4	360	41.2
	1000	56			6.6	1.14	8.8	1.52	14.8	2.54	15.5	2.65	24	4.09	32	5.5	44	7.63	62	10.7	90	15.5	113	19.4	145	24.9	156.6	26.7	201	34.6	249	42.8
	750	42			5.1	1.17	6.8	1.55	11.3	2.58	11.8	2.68	18	4.22	24	5.59	34	7.88	48	11	70	16	87	20	112	25.6	121	27.5	155	35.6	192	43.9
20	1500	75			8.7	1.11	11.5	1.47	20.1	2.56	21.1	2.68	31	3.92	41	5.25	57	7.23	82	10.4	119	15.1	150	19.1	196	24.9	211.6	26.9	272	34.6	335	42.7
	1000	50			6	1.14	8.1	1.55	14	2.67	14.7	2.81	21	4.09	29	5.5	38	7.26	57	10.8	82	15.7	102	19.5	130	24.9	140.4	26.8	182	34.7	224	42.8
	750	38			4.7	1.2	6.2	1.58	10.8	2.74	11.3	2.84	16	4.18	22	5.6	30	7.74	44	11.1	63	16.1	78	19.8	98	25	105.8	26.6	137	34.8	168	42.8

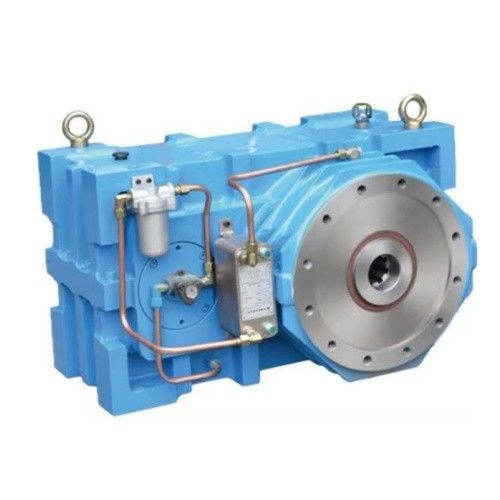

ZKT Series Reinforced Single Screw Extruder Gear Box High Precision And Efficiency 0

Packaging:

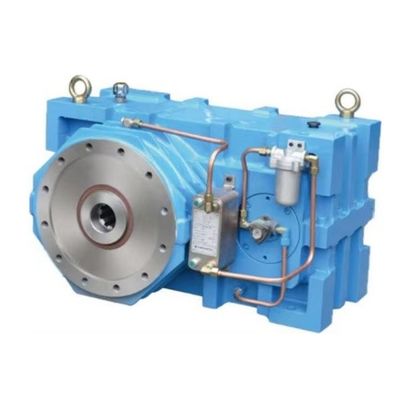

ZKT Series Reinforced Single Screw Extruder Gear Box High Precision And Efficiency 1

FAQ:
1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.

2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher

3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken.
