Main Driving Gearboxes
Created with Pixso. Horizontal Integrated Twin Screw Extruder Gearbox Units For Rubber And Plastic With Compact Structure And High Strength
  • name
  • name
  • name

Horizontal Integrated Twin Screw Extruder Gearbox Units For Rubber And Plastic With Compact Structure And High Strength

Brand Name: HUATAO
Model Number: HT
MOQ: 1
Price: Negotiatable
Delivery Time: 25 days
Payment Terms: T/T,L/C,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO, TUV
Product Name:
Horizontal Integrated Twin Screw Extruder Gearboxes Units
Key Words:
Horizontal Integrated Twin Screw Extruder Gear Units
Application:
Industrial Machinery
Color:
Basis On Customer Request
Customized:
Available
Package:
Plywood Case
HS Code:
8483409000
Production Capacity:
5000PCS/Per Month
Packaging Details:
Plywood Case
Supply Ability:
5000PCS/Per Month
Highlight:

horizontal main driving gearbox

,

horizontal main driving gearboxes

,

integrated main driving gearbox

Product Description
Horizontal Integrated Twin Screw Extruder Gearboxes Units For Rubber And Plastic
Product Description
Horizontal Integrated Twin-Screw Extruder Gearboxes For Rubber And Plastic is a specialized mechanical drive device designed for conical twin-screw extruders. The integrated design combines the distribution box and transmission box, offering compact structure, easy installation, and simplified debugging. The gearbox reduces speed and increases torque from the master motor before transferring power to the distribution box's long shaft, which drives the short shaft through precision cone screw gears with a 1:1 drive ratio.
Key Features
  • High-strength housing with durable, aesthetically pleasing design
  • Forced lubrication system with brazed plate heat exchanger
  • High-reliability gearbox lubrication system
  • Low operating temperature for extended component life
  • Convenient daily maintenance procedures
Applications
These gearbox units are ideal for PVC double pipe production lines manufacturing PVC conduit pipes (16mm to 63mm diameter). The complete system includes SJZ series extruder, double pipe mold, vacuum tank, drawing/cutting machine, and stacker, enabling simultaneous production of two pipes for enhanced efficiency.
Specifications
Type Power (Kw) Input Speed (rpm) Ratio (i) Single Shaft Output Torque (N.m) Single Axle Allowable Thrust (KN)
SJZ65 37 Max. 1500 38.4 4510 165
SJZ80 75 38.7 11400 250
SJZ92 110 37.1 12900 295
SJZ110 160 37.4 18750 400

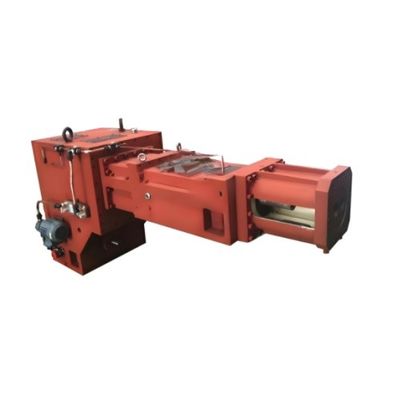

Horizontal Integrated Twin Screw Extruder Gearbox Units For Rubber And Plastic With Compact Structure And High Strength 0
Packaging

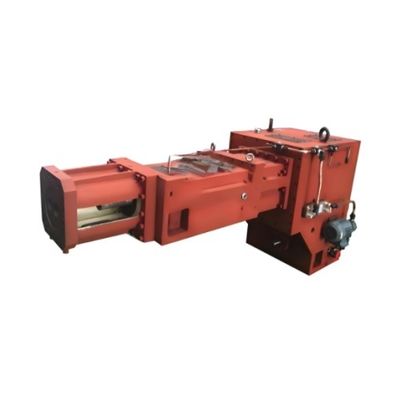

Horizontal Integrated Twin Screw Extruder Gearbox Units For Rubber And Plastic With Compact Structure And High Strength 1
Frequently Asked Questions
Can you customize it according to our requirements?
We can design non-standard products according to customer specifications, drawings, or samples.
What's your product range?
Our product line includes speed reducers, gearboxes, gear motors, pumps, and crushers.
Why should we buy from you?
With over 20 years of manufacturing experience, we combine professional engineering expertise with advanced production technology and skilled craftsmanship. We specialize in reducer production and can undertake custom sample processing projects.
