H3HV12 Vertical Parallel Shaft Helical Gearbox For Industrial Machinery

H3HV12 Vertical Parallel Shaft Helical Gearbox For Industrial Machinery

Brand Name:	HUATAO
Model Number:	HT
MOQ:	1
Price:	Negotiatable
Delivery Time:	25 days
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, TUV

Product Name:

H3HV12 Vertical Parallel Shaft Helical Gearbox

Key Words:

H Series Vertical Parallel Shaft Helical Gearbox

Application:

Industrial Machinery

Color:

Basis On Customer Request

Customized:

Available

Package:

Plywood Case

HS Code:

8483409000

Production Capacity:

5000PCS/Per Month

Packaging Details:

Plywood Case

Supply Ability:

500PCS/Per Month

Highlight:

vertical parallel shaft helical gearbox

industrial vertical helical gearbox

industrial parallel shaft helical gearbox

Product Description

H3HV12 Vertical Parallel Shaft Helical Gearbox

The H3HV12 Vertical Parallel Shaft Helical Gearbox is widely used in various sectors, including:

Heavy machinery
Material Handling
Industrial automation
Mining and construction

Technical features of H3HV12 Vertical Parallel Shaft Helical Gearbox

- Size: H3HV12-50-A, H1HV03~H1HV19, H2HV4~H2HV26, H3HV5~H3HV26, H4HV7~H4HV26
- Technical Data(kN·m): 2.9~900
- Gear Ratio: 1.25~450
- Input Power(kW):5.5~4400
- Housing material: HT250 high-strength cast iron
- Housing hardness: HBS190-240
- Gear material: 20CrMnTi alloy steel, other materials requested: 17CrNi2Mo, 20CrNi4A
- Surface hardness of gears: HRC58-62
- Gear core hardness: HRC33-40
- Input / Output shaft material: 42CrMo alloy steel
- Input / Output shaft hardness: HRC25-30
- Heat treatment: tempering, cementing, quenching. etc.
- Machining precision of gears: accurate grinding, 6-5 Grade
- Noise (MAX): 60~68dB
- Lubricating oil: GB L-CKC220-460, Shell Omala220-460
- Temp. rise (MAX): 40°C
- Efficiency: 94%~96% (depends on the transmission stage)
- Temp. rise (Oil)(MAX): 50°C
- Backlash: ≤20Arcmin
- Vibration: ≤20µm
- SAME DIMENSION AS Flender

Parameters Of H3HV12 Vertical Parallel Shaft Helical Gearbox:

H Series	Ratio	B Series	Ratio
H1 (1 Stage)	1.25~5.6	-	-
H2 (2 Stage)	6.3~28	B2 (2 Stage)	5~18
H3 (3 Stage)	22.4~112	B3 (3 Stage)	12.5~90
H4 (4 Stage)	100~450	B4 (4 Stage)	80~400

Transmission stage	Ratio (i)	Models
H1	1.25 – 5.6	H1HV3, H1HV5, H1HV7, H1HV11, H1HV13, H1HV15, H1HV17, H1HV19
H2	6.3 – 28	H2HV4, H2HV5, H2HV6, H2HV7, H2HV8, H2HV9, H2HV10, H2HV11, H2HV12, H2HV13, H2HV14, H2HV15, H2HV16, H2HV17, H2HV18, H2HV19, H2HV20, H2HV21, H2HV22, H2HV23, H2HV24, H2HV25, H2HV26
H3	25 – 112	H3HV5, H3HV6, H3HV7, H3HV8, H3HV9, H3HV10, H3HV11, H3HV12, H3HV13, H3HV14, H3HV15, H3HV16, H3HV17, H3HV18, H3HV19, H3HV20, H3HV21, H3HV22, H3HV23, H3HV24, H3HV25, H3HV26
H4	90 – 450	H4HV7, H4HV8, H4HV9, H4HV10, H4HV11, H4HV12, H4HV13, H4HV14, H4HV15, H4HV16, H4HV17, H4HV18, H4HV19, H4HV20, H4HV21, H4HV22, H4HV23, H4HV24, H4HV25, H4HV26

Modular Of Design

Typical Application of H3HV12 Vertical Parallel Shaft Helical Gearbox:

♦ Pulp and paper mill
♦ Coal mining
♦ Power Plant Equipment
♦ Metallurgical Industry
♦ Metal Forming Machinery
♦ Petrochemical Industry
♦ Mining Machine
♦ Hoisting Machinery
♦ Cement and Construction Industry
♦ Environmental Protection Industry

♦ Wood base panel machinery

♦ Tobacco machinery

♦ Cable

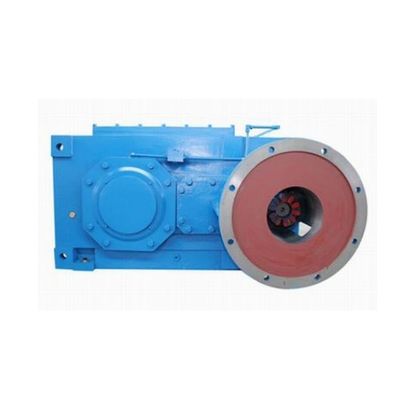

H3HV12 Vertical Parallel Shaft Helical Gearbox For Industrial Machinery 1

Packaging:

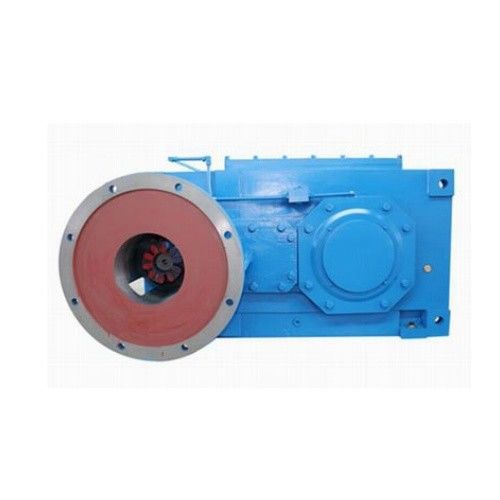

H3HV12 Vertical Parallel Shaft Helical Gearbox For Industrial Machinery 2

FAQ:
1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.

2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher

3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
