H2SH Parallel Solid Shaft Bevel Helical Gear Box Unit Cast Iron Housing

H2SH Parallel Solid Shaft Bevel Helical Gear Box Unit Cast Iron Housing

Brand Name:	HUATAO
Model Number:	HT
MOQ:	1
Price:	Negotiatable
Delivery Time:	25 days
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, TUV

Product Name:

H1HH H2HH H3HH H4HH Parallel Shaft Helical Industrial Gearbox

Key Words:

H Series Parallel Shaft Helical Industrial Gearbox

Application:

Industrial Machinery

Color:

Basis On Customer Request

Customized:

Available

Package:

Plywood Case

HS Code:

8483409000

Production Capacity:

5000PCS/Per Month

Packaging Details:

Plywood Case

Supply Ability:

500PCS/Per Month

Highlight:

Parallel bevel helical gear box

Solid Shaft bevel helical gear box

Parallel heli bevel gearbox

Product Description

H2SH Parallel Solid Shaft Helical Gear Unit

The H2SH Parallel Solid Shaft Helical Gear Unit can handle torque from 2.9 kN·m to 900 kN·m. Gear ratios range from 1.25 to 450. It supports input power from 5.5 kW to 4400 kW.

Technical features of H1HH H2HH H3HH H4HH Parallel Shaft Helical Industrial Gearbox

- Size: H1SH03~H4SH26
- Technical Data(kN·m): 2.9~900
- Gear Ratio: 1.25~450
- Input Power(kW):5.5~4400
- Housing material: HT250 high-strength cast iron
- Housing hardness: HBS190-240
- Gear material: 20CrMnTi alloy steel, other materials requested: 17CrNi2Mo, 20CrNi4A
- Surface hardness of gears: HRC58-62
- Gear core hardness: HRC33-40
- Input / Output shaft material: 42CrMo alloy steel
- Input / Output shaft hardness: HRC25-30
- Heat treatment: tempering, cementing, quenching. etc.
- Machining precision of gears: accurate grinding, 6-5 Grade
- Noise (MAX): 60~68dB
- Lubricating oil: GB L-CKC220-460, Shell Omala220-460
- Temp. rise (MAX): 40°C
- Efficiency: 94%~96% (depends on the transmission stage)
- Temp. rise (Oil)(MAX): 50°C
- Backlash: ≤20Arcmin
- Vibration: ≤20µm
- SAME DIMENSION AS Flender

Parameters Of H Series Gearbox:

H Series	Ratio	B Series	Ratio
H1 (1 Stage)	1.25~5.6	-	-
H2 (2 Stage)	6.3~28	B2 (2 Stage)	5~18
H3 (3 Stage)	22.4~112	B3 (3 Stage)	12.5~90
H4 (4 Stage)	100~450	B4 (4 Stage)	80~400

Transmission stage	Ratio (i)	Models
H1	1.25 – 5.6	H1SH03 gearbox, H1SH05 gearbox, H1SH07 gearbox, H1SH11 gearbox, H1SH13 gearbox, H1SH15 gearbox, H1SH17 gearbox, H1SH19 geabox,
H2	6.3 – 28	H2SH04 gearbox, H2SH05 gearbox, H2SH06 gearbox, H2SH07 gearbox, H2SH08 gearbox, H2SH09 gearbox, H2SH10 gearbox, H2SH11 gearbox, H2SH12 gearbox, H2SH13 gearbox, H2SH14 gearbox, H2SH15 gearbox, H2SH16 gearbox, H2SH17 gearbox, H2SH18 gearbox, H2SH19 gearbox, H2SH20 gearbox, H2SH21 gearbox, H2SH22 gearbox, H2SH23 gearbox, H2SH24 gearbox, H2SH25 gearbox, H2SH26 gearbox,
H3	25 – 112	H3SH05 gearbox, H3SH06 gearbox, H3SH07 gearbox, H3SH08 gearbox, H3SH09 gearbox, H3SH10 gearbox, H3SH11 gearbox, H3SH12 gearbox, H3SH13 gearbox, H3SH14 gearbox, H3SH15 gearbox, H3SH16 gearbox, H3SH17 gearbox, H3SH18 gearbox, H3SH19 gearbox, H3SH20 gearbox, H3SH21 gearbox, H3SH22 gearbox, H3SH23 gearbox, H3SH24 gearbox, H3SH25 gearbox, H3SH26 gearbox,
H4	90 – 450	H4SH07 gearbox, H4SH08 gearbox, H4SH09 gearbox, H4SH10 gearbox, H4SH11 gearbox, H4SH12 gearbox, H4SH13 gearbox, H4SH14 gearbox, H4SH15 gearbox, H4SH16 gearbox, H4SH17 gearbox, H4SH18 gearbox, H4SH19 gearbox, H4SH20 gearbox, H4SH21 gearbox, H4SH22 gearbox, H4SH23 gearbox, H4SH24 gearbox, H4SH25 gearbox, H4SH26 gearbox,

Modular Of Design

Typical Application of B Helical Bevel High Reduction Gearbox Right Angle:

♦ Pulp and paper mill
♦ Coal mining
♦ Power Plant Equipment
♦ Metallurgical Industry
♦ Metal Forming Machinery
♦ Petrochemical Industry
♦ Mining Machine
♦ Hoisting Machinery
♦ Cement and Construction Industry
♦ Environmental Protection Industry

♦ Wood base panel machinery

♦ Tobacco machinery

♦ Cable

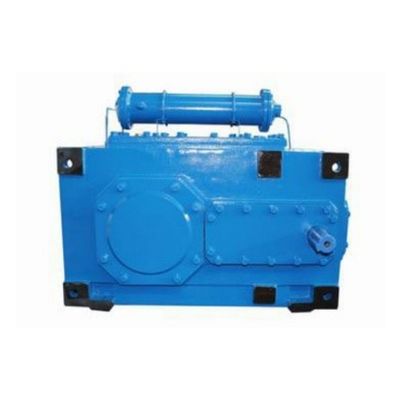

H2SH Parallel Solid Shaft Bevel Helical Gear Box Unit Cast Iron Housing 1

Packaging:

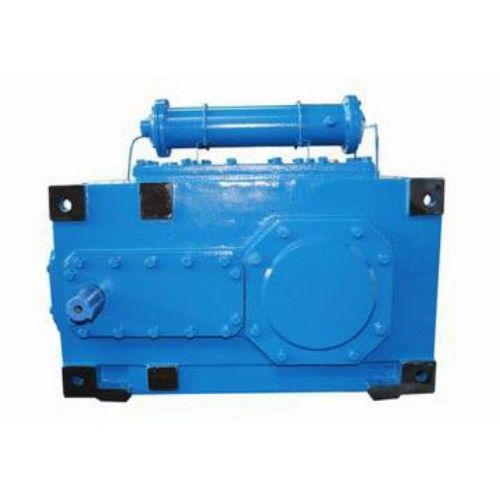

H2SH Parallel Solid Shaft Bevel Helical Gear Box Unit Cast Iron Housing 2

FAQ:
1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.

2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher

3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
