Helical Bevel Gearboxes
Created with Pixso. Parallel Shaft Industrial Gearbox Helical Bevel Gear Box H1HH H2HH H3HH H4HH
name
  • name
  • name
  • name

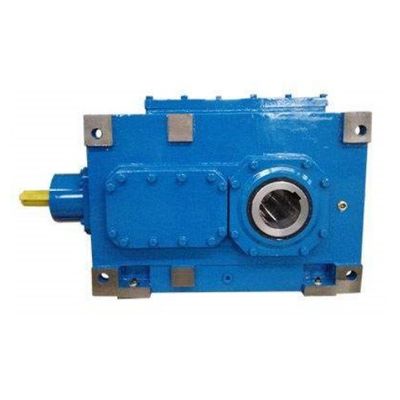

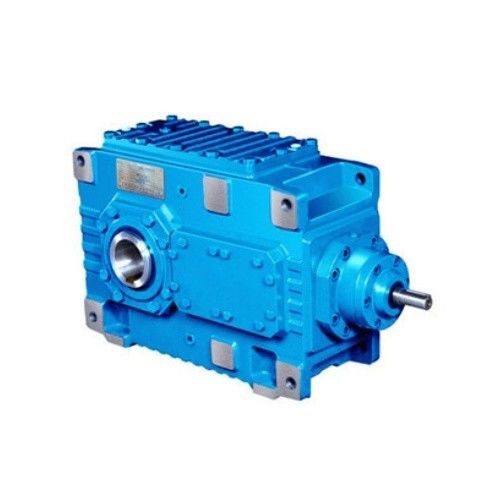

Parallel Shaft Industrial Gearbox Helical Bevel Gear Box H1HH H2HH H3HH H4HH

Brand Name: HUATAO
Model Number: HT
MOQ: 1
Price: Negotiatable
Delivery Time: 25 days
Payment Terms: T/T,L/C,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO, TUV
Product Name:
H1HH H2HH H3HH H4HH Parallel Shaft Helical Industrial Gearbox
Key Words:
H Series Parallel Shaft Helical Industrial Gearbox
Application:
Industrial Machinery
Color:
Basis On Customer Request
Customized:
Available
Package:
Plywood Case
HS Code:
8483409000
Production Capacity:
5000PCS/Per Month
Packaging Details:
Plywood Case
Supply Ability:
500PCS/Per Month
Highlight:

helical bevel gear box h1hh

,

industrial helical bevel gear box

,

h1hh industrial gearbox

Product Description

H1HH H2HH H3HH H4HH Parallel Shaft Helical Industrial Gearbox





The H1HH H2HH H3HH H4HH Parallel Shaft Helical Industrial Gearbox offers a wide range of gear ratios from 1.25 to 450, allowing for flexibility in speed and torque adjustments.



Technical features of H1HH H2HH H3HH H4HH Parallel Shaft Helical Industrial Gearbox

    • Size: H1SH03~H4SH26
    • Technical Data(kN·m): 2.9~900
    • Gear Ratio: 1.25~450
    • Input Power(kW):5.5~4400
    • Housing material: HT250 high-strength cast iron
    • Housing hardness: HBS190-240
    • Gear material: 20CrMnTi alloy steel, other materials requested: 17CrNi2Mo, 20CrNi4A
    • Surface hardness of gears: HRC58-62
    • Gear core hardness: HRC33-40
    • Input / Output shaft material: 42CrMo alloy steel
    • Input / Output shaft hardness: HRC25-30
    • Heat treatment: tempering, cementing, quenching. etc.
    • Machining precision of gears: accurate grinding, 6-5 Grade
    • Noise (MAX): 60~68dB
    • Lubricating oil: GB L-CKC220-460, Shell Omala220-460
    • Temp. rise (MAX): 40°C
    • Efficiency: 94%~96% (depends on the transmission stage)
    • Temp. rise (Oil)(MAX): 50°C
    • Backlash: ≤20Arcmin
    • Vibration: ≤20µm
    • SAME DIMENSION AS Flender





































































Parameters Of  H Series Gearbox:



H Series Ratio B Series Ratio
H1 (1 Stage) 1.25~5.6 - -
H2 (2 Stage) 6.3~28 B2 (2 Stage) 5~18
H3 (3 Stage) 22.4~112 B3 (3 Stage) 12.5~90
H4 (4 Stage) 100~450 B4 (4 Stage) 80~400



Transmission stage Ratio (i) Models
H1 1.25 – 5.6

H1HH3, H1HH5, H1HH7,  H1HH11, H1HH13, H1HH15, H1HH17, H1HH19 Gearbox
H2 6.3 – 28

H2HH4, H2HH5, H2HH6, H2HH7, H2HH8, H2HH9, H2HH10, H2HH11, H2HH12, H2HH13, H2HH14, H2HH15, H2HH16, H2HH17, H2HH18, H2HH19, H2HH20, H2HH21, H2HH22, H2HH23, H2HH24, H2HH25, H2HH26 Gearbox
H3 25 – 112

H3HH5, H3HH6, H3HH7, H3HH8, H3HH9, H3HH10, H3HH11, H3HH12, H3HH13, H3HH14, H3HH15, H3HH16, H3HH17, H3HH18, H3HH19, H3HH20, H3HH21, H3HH22, H3HH23, H3HH24, H3HH25, H3HH26 Gearbox
H4 90 – 450 H4HH7, H4HH8, H4HH9, H4HH10, H4HH11, H4HH12, H4HH13, H4HH14, H4HH15, H4HH16, H4HH17, H4HH18, H4HH19, H4HH20, H4HH21, H4HH22, H4HH23, H4HH24, H4HH25, H4HH26 Gearbox

Modular Of Design

Parallel Shaft Industrial Gearbox Helical Bevel Gear Box H1HH H2HH H3HH H4HH 0





Typical Application of B Helical Bevel High Reduction Gearbox Right Angle:



♦ Pulp and paper mill
♦ Coal mining
♦ Power Plant Equipment
♦ Metallurgical Industry
♦ Metal Forming Machinery
♦ Petrochemical Industry
♦ Mining Machine
♦ Hoisting Machinery
♦ Cement and Construction Industry
♦ Environmental Protection Industry
♦ Wood base panel machinery
♦ Tobacco machinery
♦ Cable



Parallel Shaft Industrial Gearbox Helical Bevel Gear Box H1HH H2HH H3HH H4HH 1



Packaging:



Parallel Shaft Industrial Gearbox Helical Bevel Gear Box H1HH H2HH H3HH H4HH 2



FAQ:
1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.

2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher

3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
