| Brand Name: | HUATAO |
| Model Number: | HT |
| MOQ: | 1 |
| Price: | Negotiatable |
| Delivery Time: | 25 days |
| Payment Terms: | T/T,L/C,Western Union |

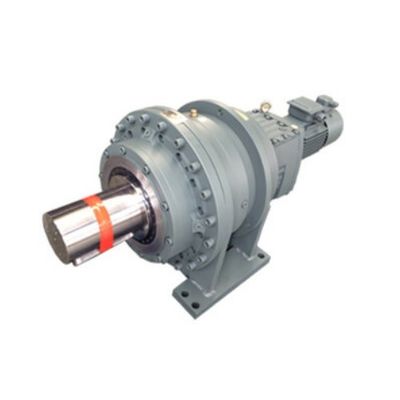

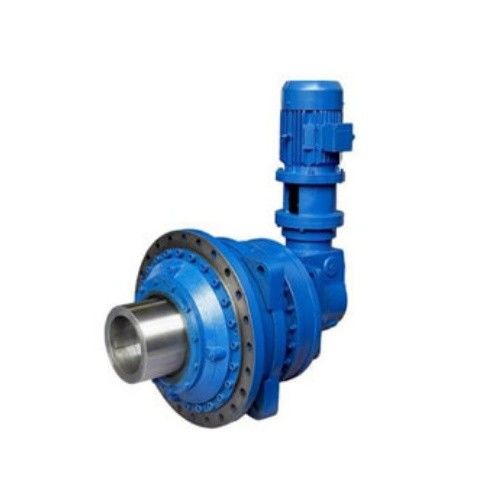

The P2NB10RF87 Combined Heavy Duty Planetary Gear Unit is widely used in light industry, food processing, beverage production, chemical industry, escalators, automated storage equipment, construction machinery, and other industrial applications.
Available Frame Sizes: 9, 10, 11, 12, 13, 14, 16-34, 35, 36 (excluding size 15)
| Type | Ratio | Type | Ratio |
|---|---|---|---|
| P2N (2 Stage) | 25, 28, 31.5, 35.5, 40 | P3N (3 Stage) | 140, 160, 180, 200, 225, 250, 280 |
| P2L (2 Stage) | 31.5, 35.5, 40, 45, 50, 56, 63, 71, 80, 90, 100 | - | - |
| P2S (2 Stage) | 45, 50, 56, 63, 71, 80, 90, 100, 112, 125 | P3S (3 Stage) | 280, 315, 355, 400, 450, 500, 560, 630, 710, 800, 900 |
| P2K (2 Stage) | 112, 125, 140, 160, 180, 200, 225, 250, 280, 320, 360, 400, 450, 500, 560 | P3K (3 Stage) | 560, 630, 710, 800, 900, 1000, 1120, 1250, 1400, 1600, 1800, 2000, 2240, 2500, 2800, 3150, 3550, 4000 |
P2N Series (2 Stage, Coaxial):
P2NA9-P2NA34, P2NB9-P2NB34, P2NC9-P2NC34, P2ND9-P2ND34
P2L Series (2 Stage, Spiral Bevel Gear):
P2LA9-P2LA34, P2LB9-P2LB34, P2LC9-P2LC34, P2LD9-P2LD34
P2S Series (2 Stage, Helical Gear):
P2SA9-P2SA34, P2SB9-P2SB34, P2SC9-P2SC34, P2SD9-P2SD34
P2K Series (2 Stage, Helical & Bevel Gear):
P2KA9-P2KA34, P2KB9-P2KB34, P2KC9-P2KC34, P2KD9-P2KD34
P3N Series (3 Stage, Coaxial):
P3NA9-P3NA34, P3NB9-P3NB34, P3NC9-P3NC34, P3ND9-P3ND34
P3S Series (3 Stage, Helical Gear):
P3SA9-P3SA34, P3SB9-P3SB34, P3SC9-P3SC34, P3SD9-P3SD34
P3K Series (3 Stage, Helical & Bevel Gear):
P3KA9-P3KA34, P3KB9-P3KB34, P3KC9-P3KC34, P3KD9-P3KD34
We can design non-standard products according to customer drawings and samples.
Speed reducers, gearboxes, gear motors, pumps, and crushers.
With over 20 years of production experience, we offer: professional engineering expertise, advanced production technology, skilled workforce, and specialization in reducer manufacturing. We can undertake custom sample processing projects.
