P2NB12-KF97 Modular Design Helical Bevel Gear Planetary Gearbox Customizable for Industrial Machinery

P2NB12-KF97 Modular Design Helical Bevel Gear Planetary Gearbox Customizable for Industrial Machinery

Brand Name:	HUATAO
Model Number:	HT
MOQ:	1
Price:	Negotiatable
Delivery Time:	25 days
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, TUV

Product Name:

P2NB12-KF97 Inline Planetary Gear Box Combined With Helical Bevel Gear Unit

Key Words:

P Series Inline Planetary Gear Box Combined With Helical Bevel Gear Unit

Application:

Industrial Machinery

Color:

Basis On Customer Request

Customized:

Available

Package:

Plywood Case

HS Code:

8483409000

Production Capacity:

5000PCS/Per Month

Packaging Details:

Plywood Case

Supply Ability:

500PCS/Per Month

Highlight:

Coaxial inline planetary gearbox

Customized planetary gear box

Coaxial planetary gearbox

Product Description

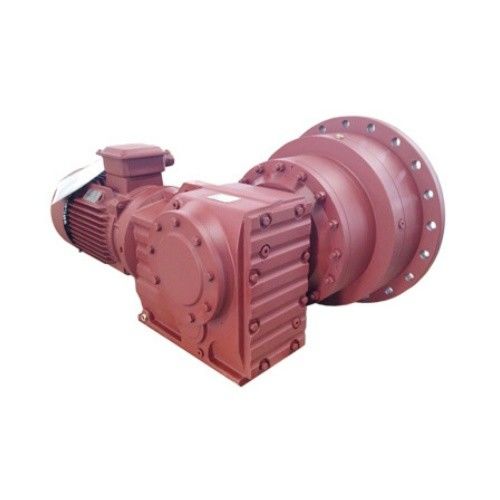

P2NB12-KF97 Coaxial Inline Planetary Gear Box Combined With Helical Bevel Gear Unit

The P2NB12-KF97 Inline Planetary Gear Box combined with Helical Bevel Gear Unit is a highly efficient and versatile gearbox solution designed for heavy-duty applications. This gearbox features a modular design that allows it to be combined with various series (K, R, S) according to specific requirements, providing flexibility in configuration.

Technical Specifications

Size: P2/09~P2/34, P3/09~P3/34
Technical Data(kN*m): 22~1920
Gear Ratio: 25~4000
Input Power(kW): 0.4~9551

P Series Planetary Gear Box Models

P2N - 2 Stage Planetary Gear Unit, Coaxial
P2L - 2 Stage Planetary Gear Unit Integrated with Spiral Bevel Gear Pair, Right Angle
P2S - 2 Stage Planetary Gear Unit Integrated with Helical Gear Pair, Parallel Shaft
P2K - 2 Stage Planetary Gear Unit Integrated with Helical Gear Pair & Bevel Gear Pair, Right Angle
P3N - 3 Stage Planetary Gear Unit, Coaxial
P3S - 3 Stage Planetary Gear Unit Integrated with Helical Gear Pair, Parallel Shaft
P3K - 3 Stage Planetary Gear Unit Integrated with Helical Gear Pair & Bevel Gear Pair, Right Angle

Frame Sizes

9, 10, 11, ... 34, 35, 36 (exclude 15)

P Series Planetary Gear Box Parameters

Types	Ratio	Types	Ratio
P2N (2 Stage)	25, 28, 31.5, 35.5, 40	P3N (3 Stage)	140, 160, 180, 200, 225, 250, 280
P2L (2 Stage)	31.5, 35.5, 40, 45, 50, 56, 63, 71, 80, 90, 100	-	-
P2S (2 Stage)	45, 50, 56, 63, 71, 80, 90, 100, 112, 125	P3S (3 Stage)	280, 315, 355, 400, 450, 500, 560, 630, 710, 800, 900
P2K (2 Stage)	112, 125, 140, 160, 180, 200, 225, 250, 280, 320, 360, 400, 450, 500, 560	P3K (3 Stage)	560, 630, 710, 800, 900, 1000, 1120, 1250, 1400, 1600, 1800, 2000, 2240, 2500, 2800, 3150, 3550, 4000

Available Models of P Series Planetary Gear Box

P2N series planetary gear unit: 2 Stage Planetary Gear Set, Coaxial
P2NA9 planetary gear box, P2NA10 gearbox, P2NA11 gearbox, P2NA12 gearbox, P2NA13 gearbox, P2NA14 gearbox, P2NA15 gearbox, P2NA16 gearbox, P2NA17 gearbox, P2NA18 gearbox, P2NA19 gearbox, P2NA20 gearbox, P2NA21 gearbox, P2NA22 gearbox, P2NA23 gearbox, P2NA24 gearbox, P2NA25 gearbox, P2NA26 gearbox, P2NA27 gearbox, P2NA28 gearbox, P2NA29 gearbox, P2NA30 gearbox, P2NA31 gearbox, P2NA32 gearbox, P2NA33 gearbox, P2NA34 gearbox

P2NB9 planetary gear box, P2NB10 gearbox, P2NB11 gearbox, P2NB12 gearbox, P2NB13 gearbox, P2NB14 gearbox, P2NB15 gearbox, P2NB16 gearbox, P2NB17 gearbox, P2NB18 gearbox, P2NB19 gearbox, P2NB20 gearbox, P2NB21 gearbox, P2NB22 gearbox, P2NB23 gearbox, P2NB24 gearbox, P2NB25 gearbox, P2NB26 gearbox, P2NB27 gearbox, P2NB28 gearbox, P2NB29 gearbox, P2NB30 gearbox, P2NB31 gearbox, P2NB32 gearbox, P2NB33 gearbox, P2NB34 gearbox

P2NC9 planetary gear box, P2NC10 gearbox, P2NC11 gearbox, P2NC12 gearbox, P2NC13 gearbox, P2NC14 gearbox, P2NC15 gearbox, P2NC16 gearbox, P2NC17 gearbox, P2NC18 gearbox, P2NC19 gearbox, P2NC20 gearbox, P2NC21 gearbox, P2NC22 gearbox, P2NC23 gearbox, P2NC24 gearbox, P2NC25 gearbox, P2NC26 gearbox, P2NC27 gearbox, P2NC28 gearbox, P2NC29 gearbox, P2NC30 gearbox, P2NC31 gearbox, P2NC32 gearbox, P2NC33 gearbox, P2NC34 gearbox

P2ND9 gearbox, P2ND10 gearbox, P2ND11 gearbox, P2ND12 gearbox, P2ND13 gearbox, P2ND14 gearbox, P2ND15 gearbox, P2ND16 gearbox, P2ND17 gearbox, P2ND18 gearbox, P2ND19 gearbox, P2ND20 gearbox, P2ND21 gearbox, P2ND22 gearbox, P2ND23 gearbox, P2ND24 gearbox, P2ND25 gearbox, P2ND26 gearbox, P2ND27 gearbox, P2ND28 gearbox, P2ND29 gearbox, P2ND30 gearbox, P2ND31 gearbox, P2ND32 gearbox, P2ND33 gearbox, P2ND34 gearbox

Modular P Series Planetary Gear Box Design

Packaging

Frequently Asked Questions

Can you customize it according to our requirements?

We can design nonstandard products according to the customer's drawing and sample.

What's your product range?

speed reducer, gearbox, gear motor, pump, crusher

What is the reason why we buy from you?

With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers. Specialized in the production of reducer. Map sample processing business can be undertaken.
