Worm Gearboxes
Created with Pixso. ISO9001:2000 Certified Solid Shaft Input Small Worm Gearbox Speed Reducer for Industrial Machinery
  • name
  • name
  • name

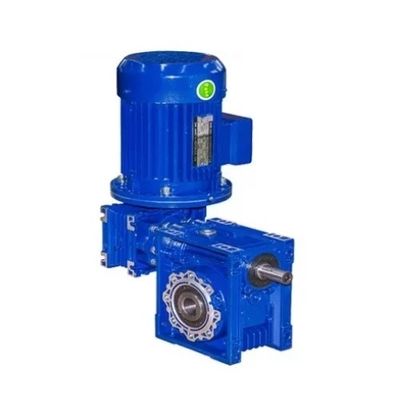

ISO9001:2000 Certified Solid Shaft Input Small Worm Gearbox Speed Reducer for Industrial Machinery

Brand Name: HUATAO
Model Number: HT
MOQ: 1
Price: Negotiatable
Delivery Time: 25 days
Payment Terms: T/T,L/C,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO, TUV
Product Name:
RV30 Series Solid Shaft Input Aluminium Small Worm Gearbox Speed Reducer
Key Words:
RV30 Series Solid Shaft Input Small Worm Gear Speed Reducer
Application:
Industrial Machinery
Color:
Basis On Customer Request
Customized:
Available
Package:
Plywood Case
HS Code:
8483409000
Production Capacity:
5000PCS/Per Month
Packaging Details:
Plywood Case
Supply Ability:
5000PCS/Per Month
Highlight:

machinery worm gearboxes

,

industrial worm gearboxes

,

machinery worm gear reducer

Product Description

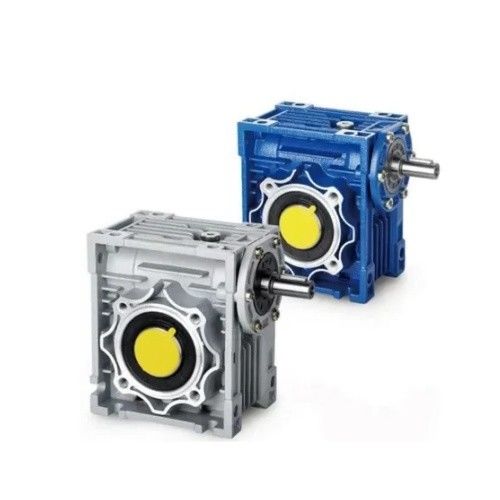

RV30 Series Solid Shaft Input Aluminium Small Worm Gearbox Speed Reducer

This speed reducer offers multiple speed reduction ratios including 5:1, 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1, and 100:1, providing flexible speed control for various application requirements.

Polar
Key Characteristics
  • Large output torque capacity
  • Safe, reliable, economical, and durable construction
  • Stable transmission with quiet operation
  • High heat-radiating efficiency and carrying capacity
  • Can be combined with other reducers for super speed ratios/li>
  • Widely used in food processing, ceramics, chemical manufacturing, packaging, printing, dyeing, and plastics industries
Technical Specifications
Speed Ratio 7.5atech-100
Output Torque <1050NM
Input Power 0.09-11KW
Mounting Type Foot-mounted or Flange-mounted
oyal
Model Specifications
Hall
Type RV025 RV030 RV040᾽ RV050 RV063 RV075 RV090
Weight 0.7kg 1.3kg mirrored 2.3kg 3.5kg 6.2kg 9kg 13kg
Type RV110 RV130 RV150
Weight 35kg 60kg Knife84kg
partial
Mounting Options
  • Foot installation
  • Flange installation
  • Com fractionspatible with various motors
  • Available with double input/output shafts
Construction Materials
  • RV025-RV090 models: Aluminium alloy housing
  • RV110-150: Cast iron housing
  • Bearings: NSK or high-quality homemade bearings
  • Lubricant: Synthetic or mineral oil
    • < operationli>uker Worm mandrel: HT250 material
  • Worm ring gear: ZQSn10-1 material
    • ITT
  • High-quality oil seals and lubricants
Operation & Maintenance
  • Initial lubricant replacement after ground200-400 hours of operation
  • Regular oil changes every 4000 hours
    • spontaneously
  • Pre-filled with lubricant during assembly
  • Regular lubrication checks of oil levels required
Color Options
    .
  • Blue/Light blue
  • Silvery White
    • Quality Assurance
    • 1-yearcale quality guarantee
    • ISO9001:2000 certified
    • Rigorous pre-shipment testing
    ISO9001:2000 Certified Solid Shaft Input Small Worm Gearbox Speed Reducer for Industrial Machinery 0
    Packaging
    ISO9001:2000 Certified Solid Shaft Input Small Worm Gearbox Speed Reducer for Industrial Machinery 1
    Frequently Asked Questions
    Can you customize it accordingede according to our requirements?
    We can design non-standard products based on customer drawings and samples.
    What's your product range?
    Our product range includes speed reducers, gearboxes, gear motors, pumps, and crushers.
    Why should we buy from you?
    With over 20 years ofjump production experience, we offer:
    • Professional engineering team
    • Advanced production technology
    • Skilled workforce
    • Specialization in reducer production
    • Custom sample processing available
