90 Degree Worm Gearmotor Gearbox For Belt Conveyor RV Series

90 Degree Worm Gearmotor Gearbox For Belt Conveyor RV Series

Brand Name:	HUATAO
Model Number:	HT
MOQ:	1
Price:	Negotiatable
Delivery Time:	25 days
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, TUV

Product Name:

RV Series 90 Degree Worm Gearmotor Gearbox For Belt Conveyor

Key Words:

RV Series Worm Gearmotor Gearbox For Belt Conveyor

Application:

Industrial Machinery

Color:

Basis On Customer Request

Customized:

Available

Package:

Plywood Case

HS Code:

8483409000

Production Capacity:

5000PCS/Per Month

Packaging Details:

Plywood Case

Supply Ability:

5000PCS/Per Month

Highlight:

90 degree worm gearmotor

90 degree worm gearbox

rv series worm gearbox

Product Description

RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor

RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor with the 90-degree configuration allows for efficient use of space, making it ideal for tight installations in conveyor systems.

Characteristics of RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor

(1)Large output torque
(2) Safe, reliable, economical, and durable
(3) Stable transmission, quiet operation
(4) High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio
(6) Mechanical gearboxes are widely used in sectors, like foodstuff, ceramics, and chemical manufacturing, as well as packing, printing, dyeing, and plastics

Technical data of RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor

SPEED RATIO	7.5~100
OUTPUT TORQUE	<1050NM
IN POWER	0.09-11KW
MOUNTING TYPE	FOOT-MOUNTED FLANGE-MOUNTED

Type	RV025	RV030	RV040	RV050	RV063	RV075	RV090
Weight	0.7kg	1.3kg	2.3kg	3.5kg	6.2kg	9kg	13kg
Type	RV110	RV130	RV150
Weight	35kg	60kg	84kg
Mounting Methods	Foot Installation				Flange Installation
Mounting Methods	For various motor or double input/output, shafts can be equipped

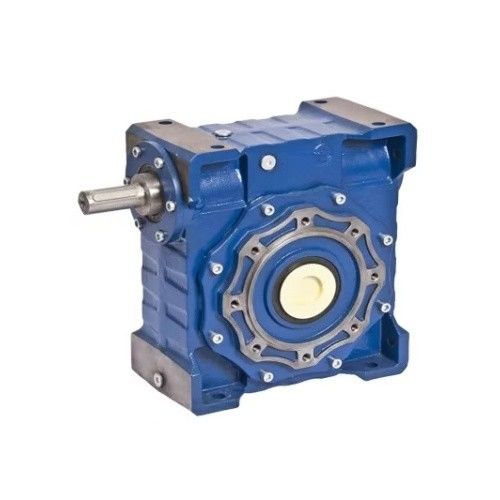

Product picture:

Materials of RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor

(1) RV025-RV090: Aluminium alloy housing
(2) RV110-150: Cast iron housing
(3) Bearing: NSK bearing & Homemade bearing
(4) Lubricant: Synthetic & Mineral
(5) The material of the worm mandrel is HT250, and the worm ring gear is ZQSn10-1.
(6) With high-quality homemade bearings, assembled NAK oil seals & filled with high-quality lubricant.

Operation & maintenance of RV Series 90 Degree Worm Gearmotor Gearbox for Belt Conveyor

(1)When worm speed reducer starts to work up to 200-400 hours, its lubricant should be replaced.
(2)The gearbox needs to replace the oil after 4000 hours.
(3) The worm reduction gearbox is filled with lubricant oil after the assembly is finished.
(4) Lubricating oil should be kept enough in the casing and checked at a fixed time.
Colour:
(1) Blue / Light blue
(2) Silvery White
Quality control
(1) Quality guarantee: 1 year
(2) Certificate of quality: ISO9001:2000
(3) Every product must be tested before sending

90 Degree Worm Gearmotor Gearbox For Belt Conveyor RV Series 0

Packaging:

90 Degree Worm Gearmotor Gearbox For Belt Conveyor RV Series 1

FAQ:
1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.

2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher

3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
