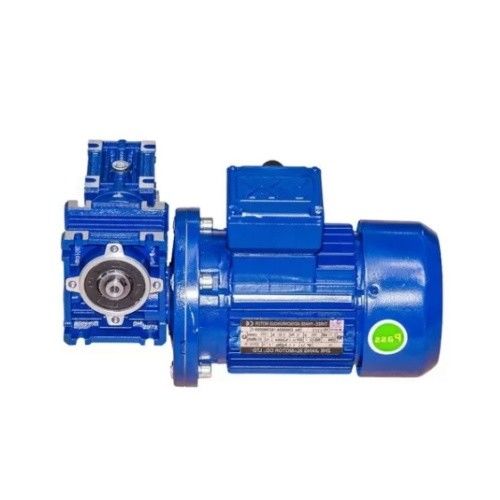

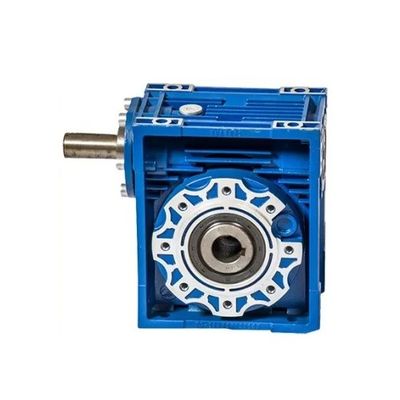

High Performance Gearbox RV Series Worm Gear Gearbox Made In China

Brand Name: HUATAO
Model Number: HT
MOQ: 1
Price: Negotiatable
Delivery Time: 25 days
Payment Terms: T/T,L/C,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO, TUV
Product Name:
High Performance Gearbox RV Series Worm Gear Motor Reducer Made In China
Key Words:
High Performance RV Series Worm Gear Motor Reducer
Application:
Industrial Machinery
Color:
Basis On Customer Request
Customized:
Available
Package:
Plywood Case
HS Code:
8483409000
Production Capacity:
5000PCS/Per Month
Packaging Details:
Plywood Case
Supply Ability:
5000PCS/Per Month
Highlight:

rv series worm gear gearbox

,

rv series worm gear drive gearbox

,

machinery worm gear gearbox

Product Description

High Performance Gearbox RV Series Worm Gear Motor Reducer Made in China





High Performance Gearbox RV Series Worm Gear Motor Reducer Made in China supports a wide input power range from 0.06 kW to 11 kW, making it versatile for various motor configurations.

The maximum torque output can reach up to 1550 N·m, allowing it to handle heavy-duty applications effectively.



Characteristics of High Performance Gearbox RV Series Worm Gear Motor Reducer Made in China

(1) Large output torque
(2) Safe, reliable, economical, and durable
(3) Stable transmission, quiet operation
(4) High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio
(6) Mechanical gearboxes are widely used in sectors, like foodstuff, ceramics, and chemical manufacturing, as well as packing, printing, dyeing, and plastics

Technical data of High Performance Gearbox RV Series Worm Gear Motor Reducer Made in China

SPEED RATIO 7.5~100
OUTPUT TORQUE <1050NM
IN POWER 0.09-11KW
MOUNTING TYPE FOOT-MOUNTED FLANGE-MOUNTED

Type RV025 RV030 RV040 RV050 RV063 RV075 RV090
Weight 0.7kg 1.3kg 2.3kg 3.5kg 6.2kg 9kg 13kg
Type RV110 RV130 RV150
Weight 35kg 60kg 84kg
Mounting Methods Foot Installation   Flange Installation
For various  motor or double input/output, shafts can be equipped
Product picture:

Materials of High Performance Gearbox RV Series Worm Gear Motor Reducer Made in China

(1)   RV025-RV090: Aluminium alloy housing
(2)   RV110-150: Cast iron housing
(3)   Bearing: NSK bearing & Homemade bearing
(4)   Lubricant: Synthetic & Mineral
(5)  The material of the worm mandrel is HT250, and the worm ring gear is ZQSn10-1.
(6)  With high-quality homemade bearings, assembled NAK oil seals & filled with high-quality lubricant.

Operation & maintenance of High Performance Gearbox RV Series Worm Gear Motor Reducer Made in China

(1)When worm speed reducer starts to work up to 200-400 hours, its lubricant should be replaced.
(2)The gearbox needs to replace the oil after 4000 hours.
(3) The worm reduction gearbox is filled with lubricant oil after the assembly is finished.
(4) Lubricating oil should be kept enough in the casing and checked at a fixed time.
 Colour:
(1)   Blue / Light blue
(2)   Silvery White
Quality control
(1)  Quality guarantee: 1 year
(2)  Certificate of quality: ISO9001:2000
(3)   Every product must be tested before sending



High Performance Gearbox RV Series Worm Gear Gearbox Made In China 0



Packaging:



High Performance Gearbox RV Series Worm Gear Gearbox Made In China 1



FAQ:
1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.

2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher

3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
