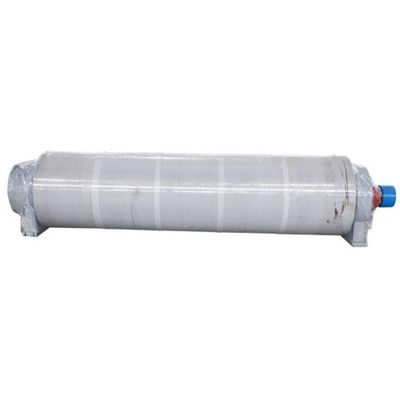

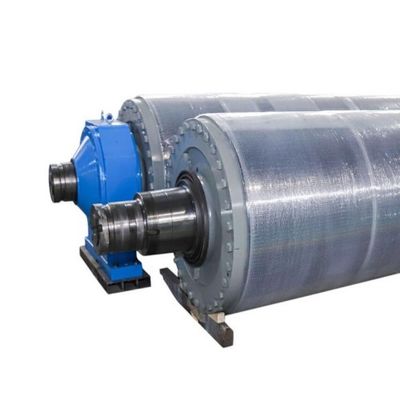

Paper Making Machine Vacuum Suction Roll Vacuum Suction Press Roll Suction Pick Up Roll

Suction Brief Introduction

Suction rolls are generally used in the PM wire part (wire suction roll) and in the PM press part (pick-up roll, felt suction roll, press suction roll).

Suction Roll Design

Depending on their usage suction rolls are produced in one-, two- or three-chamber design. The three-chamber rolls are used for transfer of the paper web from the wire part to the press part (pick-up). The body is made of a bronze or stainless tube. The roll chamber is welded from stainless material. These rolls are available with diameters up to 1.200 mm, length up to 5 m and max. pressure of 60 kN/m.

Suction Roll Main Parts

Roll surfaceChamber

Bearing bodies (on operating side langed for connection to vacuum source)

Slides for suction width adjustment

Inner shower for slides lubrication

Worm gear for roll chamber adjustment to functional position

Air distribution for slides load control

The suction rolls are supplied with coatings and felts

Rubber or polyurethane, Teflon, copper-plated, ceramics, chrome- plated or plasma-sprayed (stainless steel, type 13 % Cr, chromium-nickel, chromium-nickel-molybdenum, wol- ram-carbide etc.), i.e. according to customer’s requirements

U blind-bored or grooved rolls available, or their combinations, as required for particular blankets.

Scope of deliveries optionally includes special roll blankets from our reputable suppliers in case of previous agreement with the customer.
