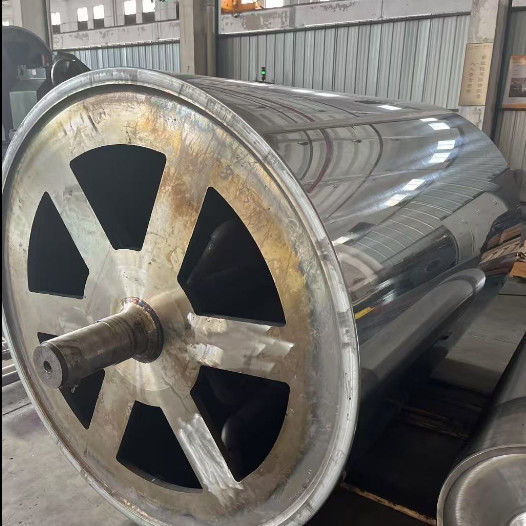

Film Vacuum Metalizer Cooling Drum Long Life Span Chrome Coating

Introduction of  Vacuum Cooling  Drum :

Cooling Drum is Located in the film metallization unit. To describe the process in simple words, the film rewinding system (shafts) are located in a vacuum chamber from which air is removed by vacuum pumps. The vacuum chamber, in turn, is divided (conditionally) by this process shaft into two parts (upper and lower). A vacuum of 10-5 mbar is created in the lower part, and 10-3 mbar in the upper part ,Under the shaft there are evaporators, which are heated to a temperature of 1350-1400 C and aluminum wire is fed onto their surface, which instantly melts into a liquid state and then evaporates.

Due to the difference in “pressure” in the upper and lower parts of the vacuum chamber, aluminum vapors acquire directional movement and fall on the surface of the film,

which moves along the cooling drum. Because aluminum vapors are hot and the temperature of the evaporators in this working area is high, so in order not to melt the moving film, the cooling drum is cooled to -25C due to the constant circulation of ethylene glycol through the built-in cooling system.

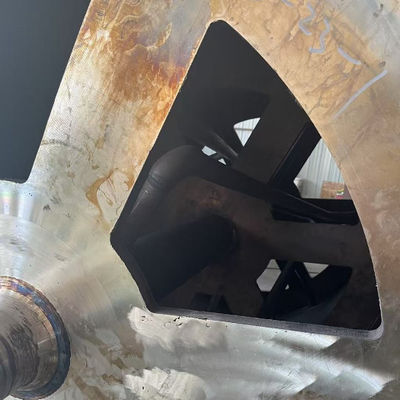

Vacuum Cooling  Drum Production Crafts:

Application of Vacuum Cooling Drum :

 Film Metallization,used for BOBST and Materials and Appliance Vacuum Metallizer

About us

Huatao Group was founded in 2008. We are a professional and leading supplier of various rollers for paper, corrugated board, rubber & plastic industry ,nonwoven fabric industries over 15 years of experience.

Paper Industry: forming roller, vacuum couch roller, dandy roller ,Breast Roller, press roller,stone roller, rubber roller,dryer cylinder ,size press roller, calender roller, pope reel roller ,spreader roller ,embossing roller.

Plastic & Rubber: chill roller, MDO Preheating Roller, MDO nip roller, MDO stretching Roller, cooling roller, corona treater roller, Corona treatment nip roller, flame roller, carbon fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core , coating drum, cooling drum, spreader roller, anilox roller,calender roller, embossing roller .

Nonwoven Fabric :cylinder roller, doffer roller ,carbon fiber guide roller , embossing roller, cooling roller ,spreader roller

With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry and our products have been exported to more than 96 countries and have a good reputation.

Huatao understands that each customer may have different requirements, which cannot meet from one factory, but we can meet, we are also familiar with domestic factory advantages with matching superior quality and help customer not walk bend road. We pursue:each customer is buying and using HUATAO products with a rest assured heart and service is never end.
