| Brand Name: | HUATAO |
| Model Number: | HT |
| MOQ: | 1 |
| Price: | Negotiatable |
| Delivery Time: | 25 days |
| Payment Terms: | T/T,L/C,Western Union |
| Output Type | Models |
|---|---|
| Solid shaft output type | S37 reducer, S47 reducer, S57 reducer, S67 reducer, S77 reducer, S87 reducer, S97 reducer |
| Solid shaft with flange output type | SF37 reducer, SF47 reducer, SF57 reducer, SF67 reducer, SF77 reducer, SF87 reducer, SF97 reducer |
| Hollow shaft output type | SA37 reducer, SA47 reducer, SA57 reducer, SA67 reducer, SA77 reducer, SA87 reducer, SA97 reducer |
| Hollow shaft with flange output type | SAF37 reducer, SAF47 reducer, SAF57 reducer, SAF67 reducer, SAF77 reducer, SAF87 reducer, SAF97 reducer |

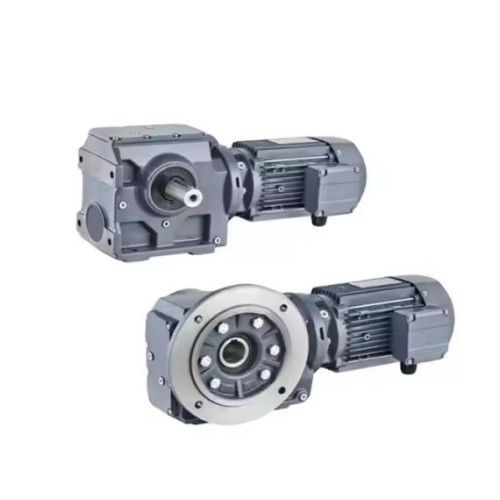

| Type | S Series Parallel Shaft Helical Gearbox |
|---|---|
| Model | S37-S97 |
| Mounting Position | Flange, hollow shaft, solid shaft |
| Efficiency | 94%~98% (depends on transmission stage) |
| Material | Housing: HT250 high-strength cast iron Worm shaft: 20CrMn Ti Input/output shaft: 40Cr |
| Warranty | 1 Year |
| Input Power | 0.09kW to 11kW and above |
| Applications | Food processing, Ceramics, Chemical, Packaging, Dyeing, Woodworking, Glass industries |
| IEC Flange | IEC standard flange |
| Lubricant | Worm gear oil |
