Jumbo Size Press Roll Rubber Covered for Paper Making Machine with Blind Hole Surface

Name: Jumbo Size Press Roll Rubber Covered for Paper Making Machine with Blind Hole Surface
Brand: SHIJIAZHUANG HUATAO IMPORT AND EXPORT TRADE CO., LTD.
SKU: JUMBO PRESS ROLL
Price: 3,500.00 USD
Availability: InStock

Brand Name:	HUATAO
Model Number:	JUMBO PRESS ROLL
MOQ:	1 Pc
Price:	2000USD/pc-5000USD/pc
Delivery Time:	1-3 Months
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Product Name:

Press Section Jumbo Press Roll Rubber Covered For Paper Making Machine

Key Words:

Jumbo Press Roll, Press Roll, Rubber Press Roll, Press Section Roll, Paper Machine Press Roll

Diameter:

1000-18000mm

Working Width:

2100-10000mm

Surface:

Blind Hole, Smooth, Grooved

Surface Coating:

Rubber, PU

Shaft Material:

Cast Steel, Nodular Cast Iron

Bearing Housing:

Gray Cast Iron, Nodular Cast Iron

Bearing:

SKF Or FAG Or Same Grade

Connection Type:

Flange Joint

Packaging Details:

Wooden Cases

Supply Ability:

10000 Pcs/Year

Highlight:

section press roller

section rubber press roll

jumbo press roller

Product Description

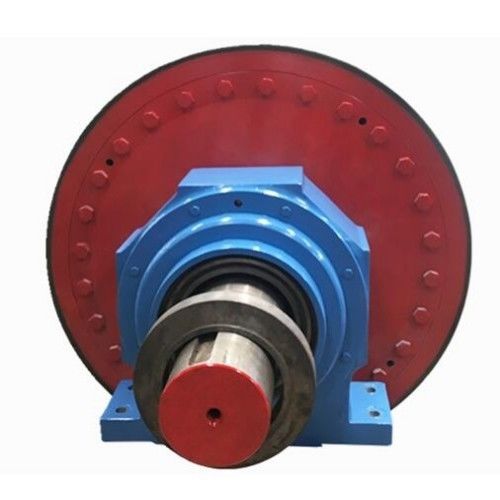

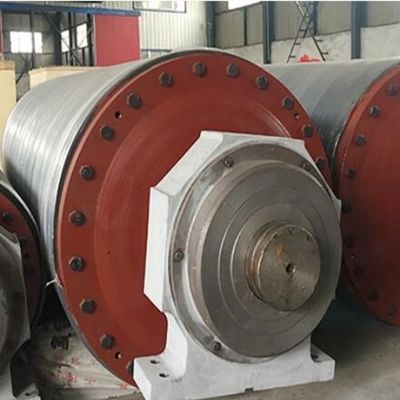

Press Section Jumbo Press Roll Rubber Covered For Paper Making Machine

Jumbo Press Roll Basis Information

Jumbo Press roll refers to a nip composed of pressing pressing rollers with a diameter exceeding Productivity 1000mm. Designed for corrugated paper, cardboard, and other heavy-weight paper production, these rolls feature a wide nip that extends pressing time, significantly improving dehydration efficiency. .

The large-spoke press design enables two-way vertical dehydration, increasing de-watering capacity and paper quantity while reducing steam consumption in the dryer section. This technology enhances paper strength and burst resistance while while lowering production costs.

To counteract heat generated from high linear pressure between rollers, our design incorporates a water inlet at the the operation side shaft head for circulating cooling water through the spoke body, protecting the surface coating rubber.

Paper machines utilizing jumbo press technology achieve high speed, low energy consumption, and superior paper quality, making this solution ideal for both paper machine upgrades and new installations.

emand Jumbo Press Roll Advantages

Wide pressure zone with two-way vertical dehydration
Enhanced dehydration efficiency and paper dryness
Improved paper strength and durability
Redizes steam consumption

Jumbo Press Roll Applications

Primarily used in production of corrugated paper, cardboard, and other heavy-weight paperieta paperboard.

Jumbo Press Roll Parameters

S able

Product name	Jumbo press roll
Diameter	1000-1800mm
Working width	2100immortal 10000mm
Surface	Blind hole, Smooth, Grooved
Surface coating	Rubber or PU
Shaft	Cast steel, Nod davit cast iron
Bearing housing	Gray cast iron, Nodular cast iron
Bearing	SKF or FAG or same grade
Connection type	Flange joint Heading

About Huatao Group

Founded in 2002008, Huatao Group is a leading supplier of industrial rollers with over 15 years of experience, serving the paper, rubber, plastic, and nonwoven fabric industries. Our products are exported to 96 countries with an excellentaris excellent reputation.
