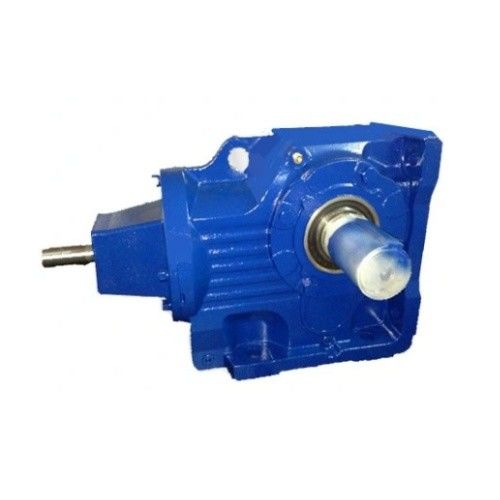

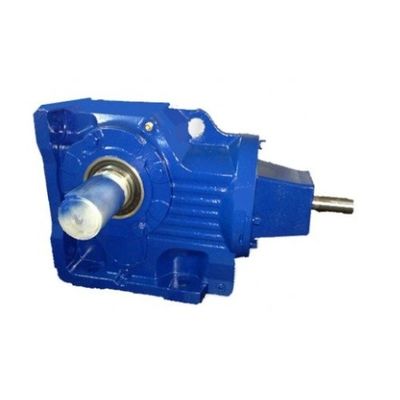

Energy Efficient K Series Helical Bevel Gear Reducer Without Motor

Energy Efficient K Series Helical Bevel Gear Reducer Without Motor

Brand Name:	HUATAO
Model Number:	HT
MOQ:	1
Price:	Negotiatable
Delivery Time:	25 days
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, TUV

Product Name:

Energy Efficient K Series Helical Bevel Gear Reducer Without Motor

Key Words:

K Series Helical Bevel Gearboxes Without Motor

Application:

Industrial Machinery

Color:

Basis On Customer Request

Customized:

Available

Package:

Plywood Case

HS Code:

8483409000

Production Capacity:

5000PCS/Per Month

Packaging Details:

Plywood Case

Supply Ability:

5000PCS/Per Month

Highlight:

K Series helical bevel gear reducer

Customized helical bevel gear reducer

K Series helical bevel reducer

Product Description

Energy Efficient K Series Helical Bevel Gear Reducer Without Motor

The Energy Efficient K Series Helical Bevel Gear Reducer Without Motor is made from high-strength cast iron (HT200 or HT250), and the housing is designed to withstand demanding conditions. The gears are manufactured from 20CrMnTi alloy steel, ensuring durability and longevity.

Technical Data Sheet of Energy Efficient K Series Helical Bevel Gear Reducer Without Motor

Size: KAF37~KAF187
Input Power(kW):0.12~200
Technical Data(N·m): 200~50000
Gear Ratio: 5.36~179.86 (imax:13461)

Model of K Series High Torque Variator Gearbox Helical Reducer

Solid shaft output type	K37 reducer, K47 reducer, K57 reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer
Solid shaft with flange output type	KF37 reducer, KF47 reducer, KF57 reducer, KF67 reducer, KF77 reducer, KF87 reducer, KF97 reducer, KF107 reducer, KF127 reducer, KF157 reducer, KF167 reducer
Hollow shaft output type	KA37 reducer, KA47 reducer, KA57 reducer, KA67 reducer, KA77 reducer, KA87 reducer, KA97 reducer, KA107 reducer, KA127 reducer, KA157 reducer, KA167 reducer
Hollow shaft with flange output type	KAF37 reducer, KAF47 reducer, KAF57 reducer, KAF67 reducer, KAF77 reducer, KAF87 reducer, KAF97 reducer, KAF107 reducer, KAF127 reducer, KAF157 reducer, KAF167 reducer

Material of KAF Series Helical Gear Spiral Bevel Gear Motor Reducer
1. Box body: HT250 high-strength cast iron, injection-shaped inner cavity, effectively reduces parts wear；
2. Gear: 20CrMo alloy steel, carbon-nitrogen co-infiltration treatment (maintain tooth surface hardness HRC60 after fine grinding)；
3 . Flat key: 45 steel, surface hardness HRC50.


Type	Helical Bevel Gearbox / Reducer
Model	K37~K187
Mounting Position	Flange, hollow shaft, solid shaft
Efficiency	94%~98%(depends on the transmission stage)
Material	Housing: HT250 high-strength cast iron
Material	Gear: 20CrMnTi
Surface hardness of gears	HRC58~62
Input/output shaft material	40Cr
Machining precision of gears	Accurate grinding, 6 grade
Warranty	1 Year
Input Power	0.09kw,0.18kw,1.1KW,1.5KW,2.2KW,3KW,4KW,5.5KW,7.5KW, 11Kw and so on.
Usages	Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing, Woodworking, Glass.
IEC Flange	IEC standard flange
Lubricant oil	Gear oil

Energy Efficient K Series Helical Bevel Gear Reducer Without Motor 2
Packaging:

FAQ:

1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.
2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher
3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
