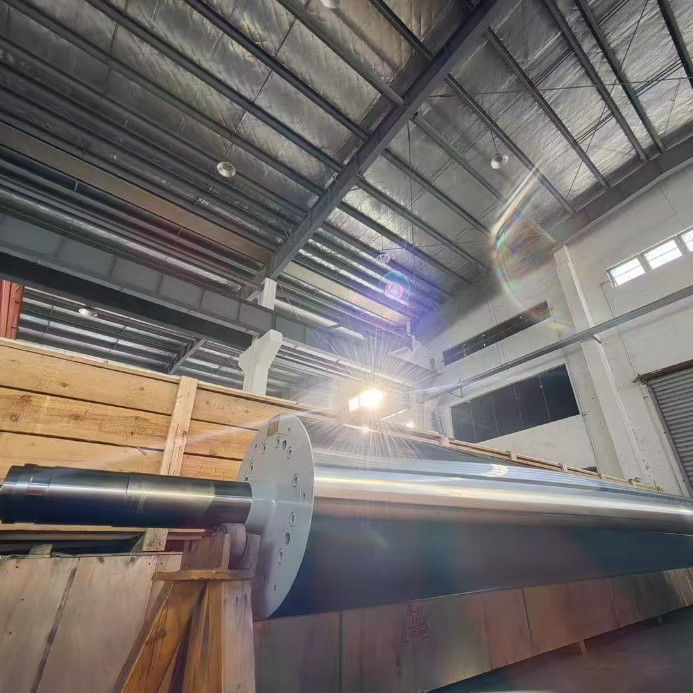

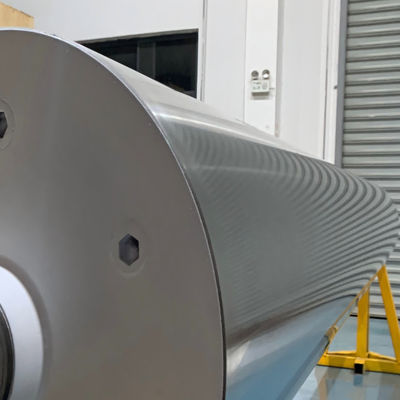

PRS Flame Treater Cooling Roller Bi-Oreinted Stretching Film Fast Temperature Reduce Flame Roller

Name: PRS Flame Treater Cooling Roller Bi-Oreinted Stretching Film Fast Temperature Reduce Flame Roller
Brand: SHIJIAZHUANG HUATAO IMPORT AND EXPORT TRADE CO., LTD.
SKU: HT-FL01
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HUATAO
Model Number:	HT-FL01
MOQ:	1PCS
Price:	Negotiable
Delivery Time:	90 DAYS
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO CE

Product Name:

PRS Flame Treater Roller Bi-oreinted Stretching Film Fast Temperature Reduce

Key Words:

Flame Roller, Flame Treater Roller

Flow System:

Cooling Channel Designed For High Heat Exchange Efficiency, Single-side Water Inlet

Out Tube Material:

Nickel-chromium Alloy Steel

Inner Tube Material:

Q355B

Runout:

0.1mm

Cylindricality:

0.1mm

Dynamic Balance:

G2.5 Level Maximum Linear Speed 450m/min

Packaging Details:

WOODEN CASE

Supply Ability:

100 Pcs/Month

Highlight:

Flame Treater Cooling Roller

PRS Flame Treater Roller

PRS flame roller

Product Description

PRS Flame Treater Roller Bi-oreinted Stretching Film Fast Temperature Reduce

Introduction of Flame Treater Roller :

The flame treatment roller is one of the important parts of the flame treatment machine in the biaxially oriented film traction section. It is used to increase the surface adhesion of the film. When the film passes through the flame treatment roller, the surface adhesion will increase, which is beneficial to converting processing of the film (printing, coating and lamination).A treatment roll, duly cooled by circulating water that constitutes the “cold side" of the film passing through the flame.

Technical Data sheet of Flame treatment roller :

Flow system	Cooling channel designed for high heat exchange efficiency, single-side water inlet
Out tube material	nickel-chromium alloy steel
inner tube material	Q355B
Drive end	Q355B forged flange, high-strength steel 42CrMo forged shaft head
Operation end	Q355B material forged flange/shaft head, interference assembly and welding
Surface coating treatment	Anti-corrosion and high-temperature resistant surface
Package	Anti-collision
Runout	0.1mm
cylindricality	0.1mm
Dynamic balance	G2.5 level maximum linear speed 450m/min

Design factor of Flame Treater Roller :

The roll’s surface temperature is a fundamental parameter in the uniformity the treated surface

Poor attention to this component can cause:

Irregular temperature along the roller, Too great a difference between the roll surface and cooling water temperatures

Water flow that is not constant with respect to the roller rotation ,Difficulty in obtaining high heat exchange coefficients

We can solved these problems by designing treatment rolls with an active radial system in which the distribution of cooling water in the input and outlet positions is able to almost completely compensate the centrifugal force. Moreover, a labyrinth system guarantees the uniformity of the surface temperature along the entire roll surface.

About us

Huatao Group was founded in 2008. We are a professional and leading supplier of various rollers for paper, corrugated board, rubber & plastic industry ,nonwoven fabric industries over 15 years of experience.

Paper Industry: forming roller, vacuum couch roller, dandy roller ,Breast Roller, press roller,stone roller, rubber roller,dryer cylinder ,size press roller, calender roller, pope reel roller ,spreader roller ,embossing roller.

Plastic & Rubber: chill roller, MDO Preheating Roller, MDO nip roller, MDO stretching Roller, cooling roller, corona treater roller, Corona treatment nip roller, flame roller, carbon fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core , coating drum, cooling drum, spreader roller, anilox roller,calender roller, embossing roller .

Nonwoven Fabric :cylinder roller, doffer roller ,carbon fiber guide roller , embossing roller, cooling roller ,spreader roller

With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry and our products have been exported to more than 96 countries and have a good reputation.

Huatao understands that each customer may have different requirements, which cannot meet from one factory, but we can meet, we are also familiar with domestic factory advantages with matching superior quality and help customer not walk bend road. We pursue:each customer is buying and using HUATAO products with a rest assured heart and service is never en
