| Brand Name: | HUATAO |
| Model Number: | HT |
| MOQ: | 1 |
| Price: | Negotiatable |
| Delivery Time: | 25 days |
| Payment Terms: | T/T,L/C,Western Union |

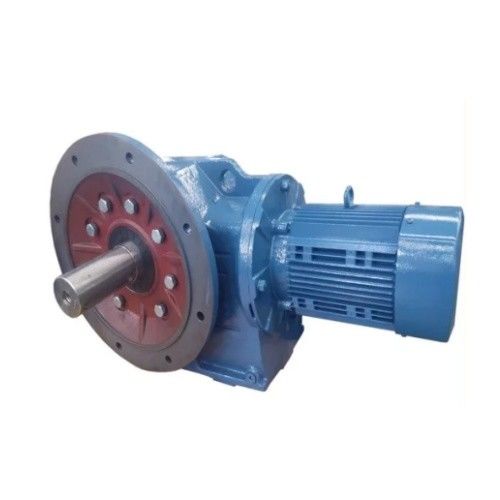

The KF127 Helical Bevel Reduction Gear Motor Reducer with Output Flange delivers robust performance with input power ranging from 7.5 kW to 90 kW and maximum torque capacity up to 13,000 N*m. Offering a versatile gear ratio range from 8.68 to 146.07, this unit provides precise speed and torque control for demanding industrial applications.
| Output Type | Model Series |
|---|---|
| Solid shaft output | K37, K47, K57, K67, K77, K87, K97, K107, K127, K157, K167 |
| Solid shaft with flange output | KF37, KF47, KF57, KF67, KF77, KF87, KF97, KF107, KF127, KF157, KF167 |
| Hollow shaft output | KA37, KA47, KA57, KA67, KA77, KA87, KA97, KA107, KA127, KA157, KA167 |
| Hollow shaft with flange output | KAF37, KAF47, KAF57, KAF67, KAF77, KAF87, KAF97, KAF107, KAF127, KAF157, KAF167 |
| Type | Helical Bevel Gearbox/Reducer |
|---|---|
| Model | K37~K187 |
| Mounting Options | Flange, hollow shaft, solid shaft |
| Efficiency | 94%~98% (varies by transmission stage) |
| Gear Material | 20CrMnTi alloy steel |
| Gear Hardness | HRC58~62 |
| Shaft Material | 40Cr alloy steel |
| Gear Precision | 6 grade, precision ground |
| Warranty | 1 Year |
| Common Power Ratings | 0.09kW to 11kW (and higher) |
| Applications | Food processing, Ceramics, Chemical, Packaging, Dyeing, Woodworking, Glass industries |
| Flange Standard | IEC standard |
| Lubrication | Gear oil |
We can design non-standard products according to customer specifications, drawings, or samples.
Our product portfolio includes speed reducers, gearboxes, gear motors, pumps, and crushers.
With over 20 years of manufacturing experience, we combine professional engineering expertise with advanced production technology and skilled craftsmanship. We specialize in reducer production and can undertake custom sample processing projects.
