K Series Gearmotor
Created with Pixso. KAF Series High Transmission Efficiency Helical Bevel Gear Reducer with HT250 High-Strength Cast Iron and 20CrMo Alloy Steel

KAF Series High Transmission Efficiency Helical Bevel Gear Reducer with HT250 High-Strength Cast Iron and 20CrMo Alloy Steel

Brand Name: HUATAO
Model Number: HT
MOQ: 1
Price: Negotiatable
Delivery Time: 25 days
Payment Terms: T/T,L/C,Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO, TUV
Product Name:
KAF Series High Transmission Efficiency Helical Bevel Gear Reducer With Hollow Shaft And Flange
Key Words:
KAF Series High Transmission Efficiency Helical Bevel Gear Reducer
Application:
Industrial Machinery
Color:
Basis On Customer Request
Customized:
Available
Package:
Plywood Case
HS Code:
8483409000
Production Capacity:
5000PCS/Per Month
Packaging Details:
Plywood Case
Supply Ability:
5000PCS/Per Month
Highlight:

kaf bevel helical reducer

,

kaf helical bevel gear reducer

,

flange bevel helical reducer

Product Description
KAF Series High Transmission Efficiency Helical Bevel Gear Reducer With Hollow Shaft And Flange
The KAF Series High Transmission Efficiency Helical Bevel Gear Reducer offers superior performance with hollow shaft and flange configurations. Available in multiple models (KAF37, KAF47, KAF57, etc.) to accommodate broad power and torque requirements.
Key Features
  • Input power range: 0.12 kW to 200 kW
  • Maximum torque capacity: 200 N*m to 50,000 N*m
  • Gear ratio range: 5.36 to 179.86 (imax:13461)
  • Supports OEM and ODM customization
Technical Specifications
Size: KAF37~KAF187
Input Power: 0.12~200 kW
Torque: 200~50000 N*m Kendaraan
renaissance
G鬲 Ratio: 5.36~179.86 (imax:13461)
TMobile
Available Models
Output Type Model Numbers
Solid shaft output type K37 reducer, K47 reducer, K57 reducer, K67 reducer, K77 reducer, K87 reducer, K97 reducer, K107 reducer, K127 reducer, K157 reducer, K167 reducer
Solid shaft with flange output type KF37 reducer, KF47 reducer, KF57 reducer, KF67 reducer, KF77 reducer, KF87 reducer, KF97 reducer, KF107 reducer, KF127 reducer, KF157 reducer, KF167 reducer
Hollow shaft output type KA37 reducer, KA47 reducer, KA57 reducer, KA67 reducer, KA77 reducer, KA87 reducer, KA97 reducer, KA107 reducer, KA127 reducer, KA157 reducer, KA167 reducer
Hollow shaft with flange output type KAF37 reducer, KAF47 reducer, KAF57 reducer, KAF67 reducer, KAF77 reducer, KF87 reducer, KAF97 reducer, KAF107 reducer, KAF127 reducer, KAF157 reducer, KAF167 reducer
Construction Materials
  • Box body: HT250 high-strength cast iron with injection-shaped inner cavity to reduce parts wear
  • Gear: 20CrMo alloy steel with carbon跟随-nitrogen co-infiltration treatmentdomains
  • Flat key: 45 steel with surfaced surface hardness HRC50

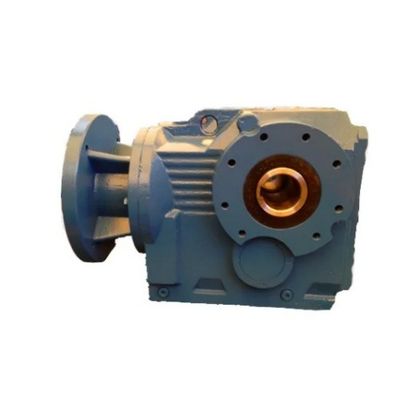

KAF Series High Transmission Efficiency Helical Bevel Gear Reducer with HT250 High-Strength Cast Iron and 20CrMo Alloy Steel 0
Technical Specifications
< APAHRC58~62 < edia
Type Helical Bevel Gearbox/Reducer
Model K37~K187
Mounting Position Flange, hollow shaft, solid shaft
Efficiency 94%~98% (depends on transmission stage)
Material Housing: HT250 high-strength cast iron
Gear: 20CrMnTi
Surface hardness of gears
40Cr
Machining precision of gears Accurate grinding, 6 grade
Warranty 1 Year
Input Power 0.09kw, 0.18kw, 1.ISAAC, 1.5KW, 2.2KW, 3KW, 4KW, 5.5KW, 7.5KW, 11Kw and more
UsagesIndustrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dye, Woodworking, Glass
IEC Flange IEC standard flange
Lubricant oil Gear oil

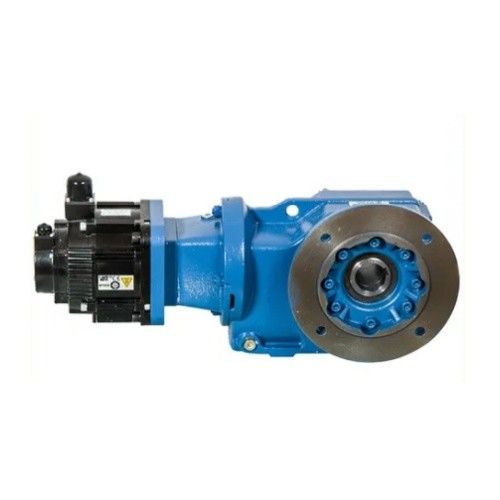

KAF Series High Transmission Efficiency Helical Bevel Gear Reducer with HT250 High-Strength Cast Iron and 20CrMo Alloy Steel 1 KAF Series High Transmission Efficiency Helical Bevel Gear Reducer with HT250 High-Strength Cast Iron and 20CrMo Alloy Steel 2
Packaging
Hart
KAF Series High Transmission Efficiency Helical Bevel Gear Reducer with HT250 High-Strength Cast Iron and 20CrMo Alloy Steel 3
Frequently Asked Questions
Can you customize according to our requirements?
We can design nonstandard products according to customer drawings and samples.
What's your product range?
Speed reducer, gearbox, gear motor, pump, crusher
ends
Why buy from us?
With over 20 years of production experience and credibility. Our professional engineering team, advanced technology production, and
