| Brand Name: | HUATAO |
| Model Number: | HT |
| MOQ: | 1 |
| Price: | Negotiatable |
| Delivery Time: | 25 days |
| Payment Terms: | T/T,L/C,Western Union |
| Output Type | Available Models |
|---|---|
| Solid shaft output type | K37, K47, K57, K67, K77, K87, K97, K107, K127, K157, K167 |
| Solid shaft with flange output type | KF37, KF47, KF57, KF67, KF77, KF87, KF97, KF107, KF127, KF157, KF167 |
| Hollow shaft output type | KA37, KA47, KA57, KA67, KA77, KA87, KA97, KA107, KA127, KA157, KA167 |
| Hollow shaft with flange output type | KAF37, KAF47, KAF57, KAF67, KAF77, KAF87, KAF97, KAF107, KAF127, KAF157, KAF167 |

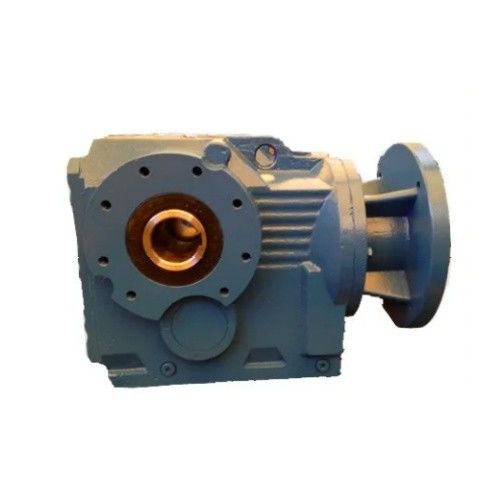

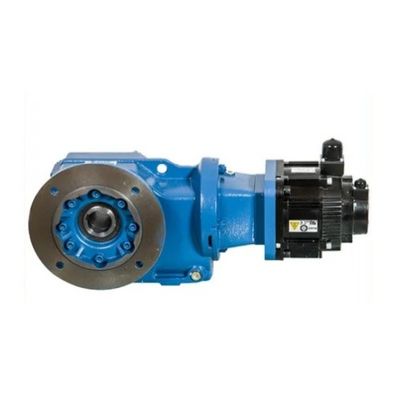

| Type | Helical Bevel Gearbox/Reducer |
|---|---|
| Model | K37~K187 |
| Mounting Position | Flange, hollow shaft, solid shaft |
| Efficiency | 94%~98% (depends on transmission stage) |
| Material | Housing: HT250 high-strength cast iron Gear: 20CrMnTi |
| Surface Hardness | HRC58~62 |
| Input/Output Shaft | 40Cr material |
| Gear Precision | Accurate grinding, 6 grade |
| Warranty | 1 Year |
| Input Power | 0.09kW, 0.18kW, 1.1KW, 1.5KW, 2.2KW, 3KW, 4KW, 5.5KW, 7.5KW, 11KW |
| Applications | Food, Ceramics, Chemical, Packaging, Dyeing, Woodworking, Glass industries |
| IEC Flange | IEC standard flange |
| Lubricant | Gear oil |
