| Brand Name: | HUATAO |
| Model Number: | HUATAO-CFGR-4 |
| MOQ: | 1PCS |
| Price: | 2000USD/pc-5000USD/pc |
| Delivery Time: | 50DAYS |
| Payment Terms: | L/C,T/T,Western Union |
| Parameter | Specification |
|---|---|

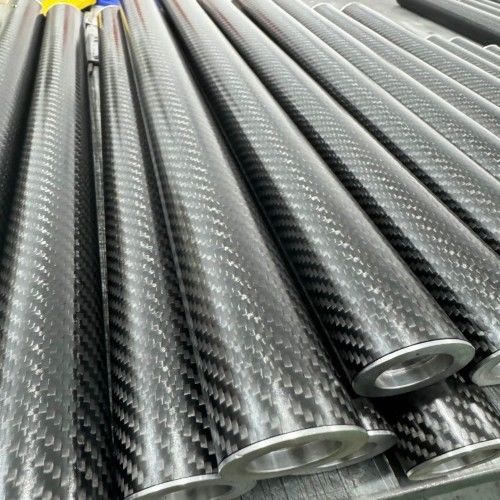

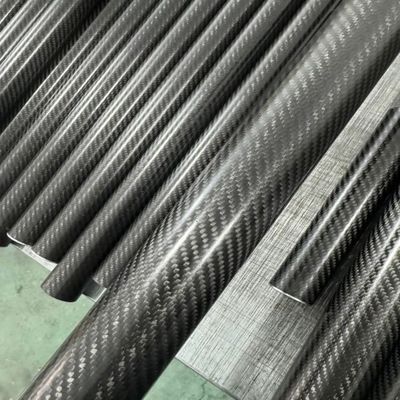

| Roller material | High-performance carbon fiber composite material |
| Shaft head connection | Durable and reliable (patented technology) |
| Weight | 3kg, composite material density 1600kg/m³ |
| Surface coating | Composite material coating or fiber composite material coating |
| Maximum diameter | Custom designs available <80mm |
| Surface roughness | Rz0.2um-1.5um |
| Maximum length | Custom designs available <3500mm |
| Surface hardness | Shaw D85, or fiber material surface hardness Babbitt 55 |
| Stiffness | 180N/meter, deflection deformation 0.01mm/m (custom stiffness available) |
| Composite coating thickness | 0.3mm |
| Speed | Linear speed 1200m/min, or custom designs >7000r/min |
| Surface exhaust design | Smooth operation |
