| Brand Name: | HUATAO |
| Model Number: | HT |
| MOQ: | 1 |
| Price: | Negotiatable |
| Delivery Time: | 25 days |
| Payment Terms: | T/T,L/C,Western Union |

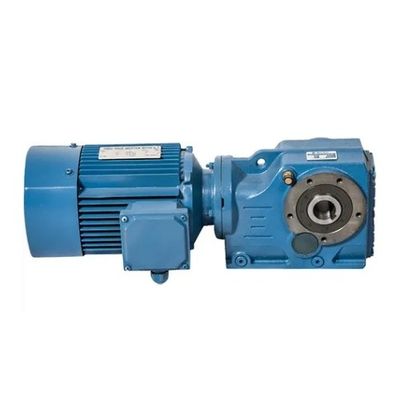

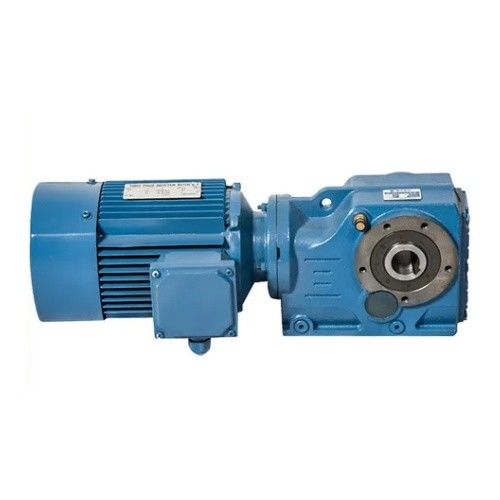

The KAF37 Series Hollow Output Shaft Helical Bevel Right Angle Speed Reducer Gearbox is engineered for high transmission efficiency, reducing energy consumption during operation. It supports input power from 0.18 kW to 3 kW, making it suitable for various industrial applications.
| Parameter | Value |
|---|---|
| Size Range | K37~K187 |
| Input Power (kW) | 0.12~200 |
| Torque (N*m) | 200~50000 |
| Gear Ratio | 5.36~179.86 (imax:13461) |
| Efficiency | 94%~98% (depends on transmission stage) |
| Warranty | 1 Year |
| Output Type | Models |
|---|---|
| Solid shaft output | K37, K47, K57, K67, K77, K87, K97, K107, K127, K157, K167 |
| Solid shaft with flange output | KF37, KF47, KF57, KF67, KF77, KF87, KF97, KF107, KF127, KF157, KF167 |
| Hollow shaft output | KA37, KA47, KA57, KA67, KA77, KA87, KA97, KA107, KA127, KA157, KA167 |
| Hollow shaft with flange output | KAF37, KAF47, KAF57, KAF67, KAF77, KAF87, KAF97, KAF107, KAF127, KAF157, KAF167 |
