| Brand Name: | HUATAO |
| Model Number: | HT |
| MOQ: | 1 |
| Price: | Negotiatable |
| Delivery Time: | 25 days |
| Payment Terms: | T/T,L/C,Western Union |
| Output Type | Model Range |
|---|---|
| Solid shaft output | K37, K47, K57, K67, K77, K87, K97, K107, K127, K157, K167 |
| Solid shaft with flange output | KF37, KF47, KF57, KF67, KF77, KF87, KF97, KF107, KF127, KF157, KF167 |
| Hollow shaft output | KA37, KA47, KA57, KA67, KA77, KA87, KA97, KA107, KA127, KA157, KA167 |
| Hollow shaft with flange output | KAF37, KAF47, KAF57, KAF67, KAF77, KAF87, KAF97, KAF107, KAF127, KAF157, KAF167 |
| Specification | Details |
|---|---|

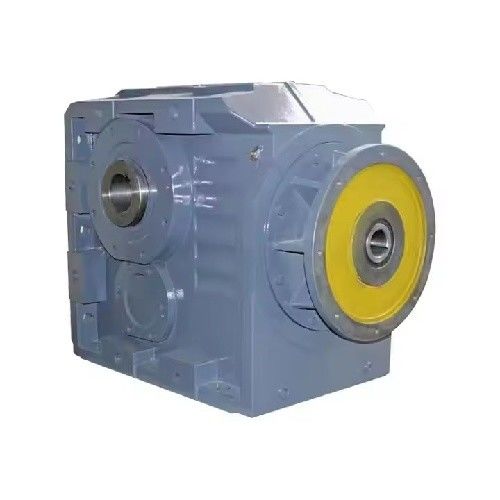

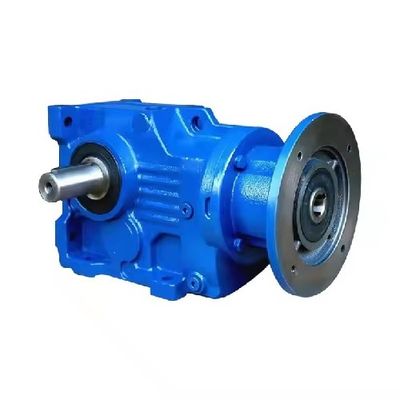

| Type | Helical Bevel Gearbox/Reducer |
| Model Range | K37~K187 |
| Mounting Options | Flange, hollow shaft, solid shaft |
| Efficiency | 94%~98% (depends on transmission stage) |
| Gear Material | 20CrMnTi |
| Gear Surface Hardness | HRC58~62 |
| Shaft Material | 40Cr |
| Gear Machining Precision | Accurate grinding, 6 grade |
| Warranty | 1 Year |
| Input Power Options | 0.09kW to 11kW and above |
| Applications | Food processing, Ceramics, Chemical, Packaging, Dyeing, Woodworking, Glass industries |
| Flange Standard | IEC standard |
| Lubrication | Gear oil |
