Customized Rubber Crownning Soft Calender roller Oil Circulation

Introduction of Soft Calender roller:

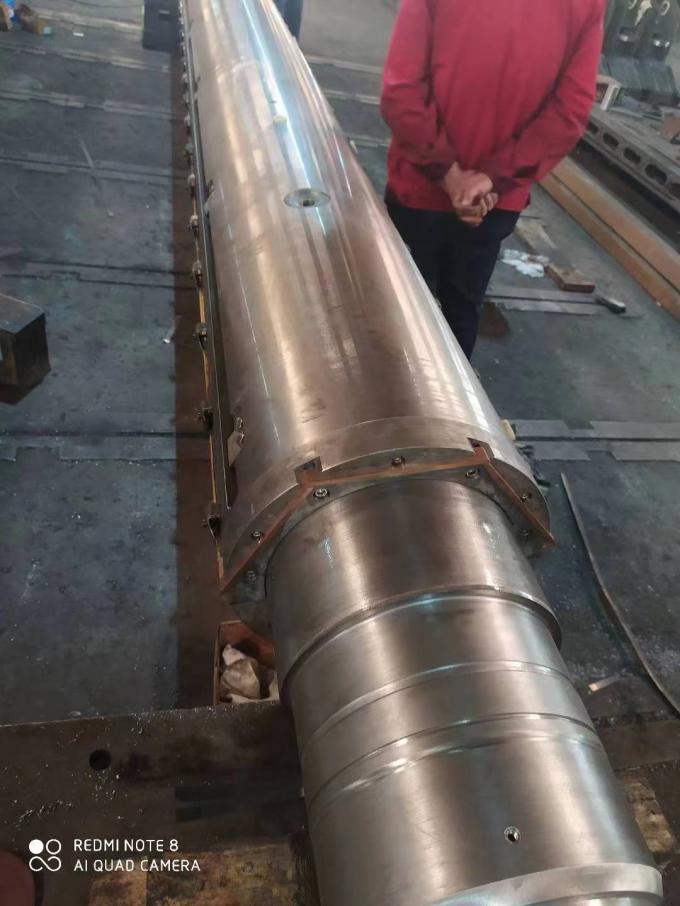

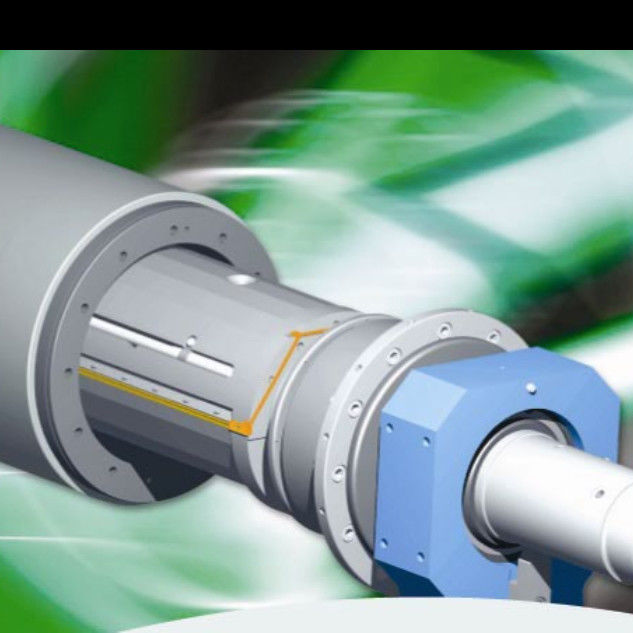

Soft Calender roll comprises a massive steel shaft,  steel shell and fixed bearing arrangement on the shaft. The hydraulic hoses are equipped with fast couplings.

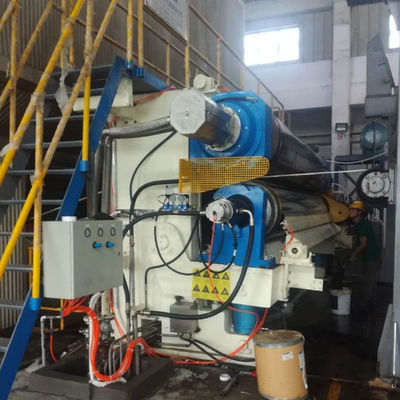

The oil pressure between he shaft and shell automatically control against linear load, so as to keep the linear pressure distribution uniform through the entire nip. Crow correction of the roll can be manually controlled from the control panel,mainly used in the calender machine of the paper machine line.

Technical Data Sheet of Soft Calender roller:

Bearing of the Soft Calender roller:

Spherical roller bearing                     2pcs

Bearing type                                 SKF/FAG

Joint ball bearing  & Bearing house          1set

--drawing supplied by client

Static test after roll assembly is used to detect leakage

Max Test pressure                            10bar

Dynamic simulation after roll assembly is used to detect roll deformation

SOFT CALENDER ROLLER DIFFERENTIAL PRESSURE REGULATION HEAD :

Function          Regulate the pressure in the Swimming Roll to control the correct deflection.

Equipment Location     On front side of the Swimming Roll

proportion regulation air cell               1pcs

Piston rod                                   1pcs

 Bearing (INA)                               1pcs

  Seal parts                                  Germany

ASSEMBLY TOOL of Soft Calender Roller :

Disassembly and installation tool of swimming roll  1set

Guide Sleeve                                1pc

Guide screw                                 1Set
