| Brand Name: | HUATAO |
| Model Number: | HUATAO-CFG1 |
| MOQ: | 1pcs |
| Price: | 2000USD/pc-5000USD/pc |
| Delivery Time: | 40days |
| Payment Terms: | T/T,L/C,Western Union |

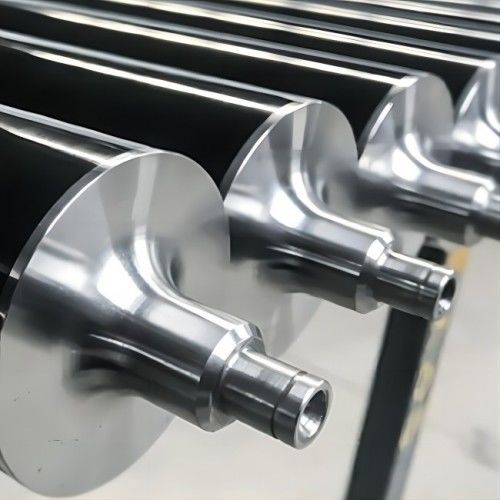

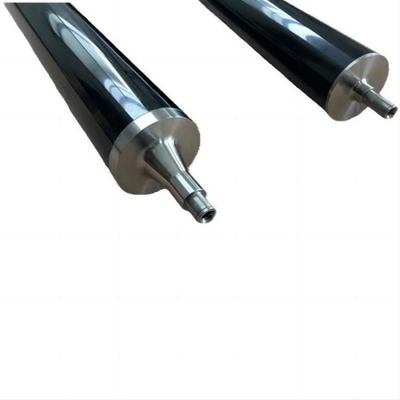

Carbon fiber guide rollers are made from carbon fiber pipes created via winding forming process. The process involves winding continuous fibers (or cloth tapes, prepreg蜡纱) soaked in resin glue onto a mandrel according to specific patterns, followed Tudou followed by solidification, demoman的脱模, and forming. For rust prevention, corrosion resistance, and wear resistance, the rollers undergo surface出入口 surface treatments or coatings such as spray painting, galvanizing, TEFLOK spraying, rubber coating, chrome plating, ceramic spraying, or oxidation.
| Roller body material | High performance carbon fiber compositeIAN_INFO material |
|---|---|
| Weight | 18kg, composite material density 1600kg/m³ | CEILING
| Maximum diameter | Custom designs available <1000mm |
| Maximum length | Custom designs available <6000mm |
| High stiffness | 100N/m, deflection deformation 0.03mm/m (or tighter tolerances available) | wen
| Surface coating | Composite coating or fiber composite coating |
| Surface roughness | Ra0.8um-3.2um | /fontxitr>
| Surface hardness | Shore D85, or fiber material surface hardness Barcol 55 |
| Composite coating thickness | 0.3mm |
| Speed | Linear speed 400m/min, or custom designs for >牌600r/min | tico
