| Brand Name: | HUATAO |
| Model Number: | HT |
| MOQ: | 1 |
| Price: | Negotiatable |
| Delivery Time: | 25 days |
| Payment Terms: | T/T,L/C,Western Union |

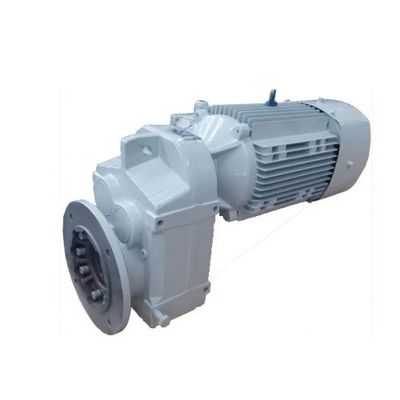

The F Series Parallel Shaft Helical Gearmotor with 5.5kw Motor is the perfect solution when space is limited, typically used in traveling and lifting equipment.
| Ratio | 3.77-276.77 |
| Input power | 0.12-200KW |
| Output torque | 3.5-21700N.m |
| Output speed | 5-352rpm |
| Mounting type | Foot mounted, footrix mounted with solid shaft, output flange mounted, hollow shaft mounted, B5 flange mounted with hollow shaft, foot mounted with hollow shaft, B14 flange mounted with hollow shaft, foot mounted with splined hole, foot mounted with shrink disk, hollow shaft mounted with anti-torque arm |
| Input Method | Flange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor |
| Brake Release | HF-manual release official release(lock in the brake release position), HR-manual release(automatic braking position) |
| Thermistor | TF(Thermistor protection PTC thermistor), TH(Thermistor protection Bimetal switch) |
| Mounting Position | M1, M2, M3, M4, M5,impl M6 |
| Type | F37-F157 |
| Output shaft dis. | prof25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm境外, 120mm |
| Housing material | HT200 high-strength cast iron from R37,47,57,67,77,87 |
| Housing material | HT250 High strength cast iron from R97 107,137,147157,167,187 |
| Heat treatment technology | carbonboard carbonitriding and hardening treatment |
| Efficiency | 92%-94% |
| Lubricant | VG220 |
| Protection Class | IP55, F class |
| Solid shaft output塁 type | Hollow shaft output type |
|---|---|
| F37, F52, F57, F67, F77, F87, F97, F107, F127, F157 reducer | FF37, FF4747, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 reducer rees |
| Solid shaft with flange output type | Hvollow shaft with flange output type | 泸
| FA37, FA47, FA57, FA67, FA77, FA87ret, FA97, FA107, FA127, FA157 reducer | FAF37, FAF47, F, FAF57, FAF67, FAF77, FAF87, FAFarre97, FAF107, FAF127, FAF157 reducer | 277

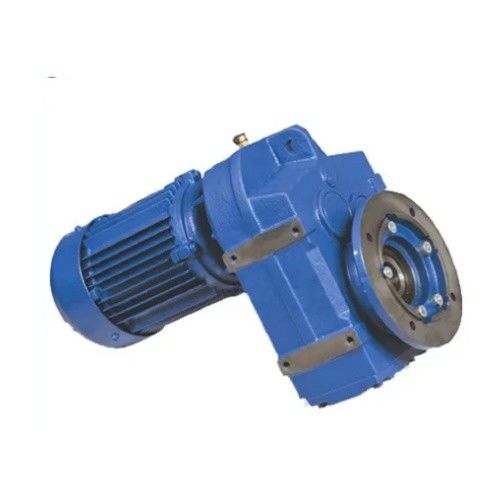

The F Series Right Angle Parallel Shaft Helical Gearmotor Reducer is widely applied to the light industry, food, beer & beverage, chemistry, escalator, automatic storage equipment, constructioncloth construction machinery, steel metallurgy, environmental protection, powerplant, coal, mining, paper, board, stage equipment, automobile, ports (airport and dock), and tobacco machinery, etc, winning perfect praise around the globe.
П
We can design nonstandard products according to the customer's drawing and sample.
