High Precision F Series Parallel Helical Gearbox For Stirring Machinery

High Precision F Series Parallel Helical Gearbox For Stirring Machinery

Brand Name:	HUATAO
Model Number:	HT
MOQ:	1
Price:	Negotiatable
Delivery Time:	25 days
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, TUV

Product Name:

F Series Helical Parallel Gearbox For Stirring Machinery

Key Words:

F Series Helical Parallel Gearbox Units

Application:

Industrial Machinery

Color:

Basis On Customer Request

Customized:

Available

Package:

Plywood Case

HS Code:

8483409000

Production Capacity:

5000PCS/Per Month

Packaging Details:

Plywood Case

Supply Ability:

5000PCS/Per Month

Highlight:

f series parallel helical gearbox

precision parallel helical gearbox

precision parallel shaft helical gearbox

Product Description

F Series Helical Parallel Gearbox For Stirring Machinery

The F Series Helical Parallel Gearbox For Stirring Machinery is a reliable and efficient solution for stirring machinery, providing high performance, durability, and flexibility in various applications.

Features of F77 Series Flange Mounted Helical Geared Motor Reducer:

- High efficiency: 92%-94%;
- Parallel output, compact structure, large output torque, smooth operation, low noise, and long service life.
- High precision: The gear is made of high-quality alloy steel forging, carbonitriding and hardening treatment, and a grinding process to ensure high accuracy and stable running.
- High interchangeability: highly modular, serial design, strong versatility and interchangeability.

Key Attributes Of F Series Flange Mounted Helical Geared Motor Reducer

Ratio	3.77-276.77
Input power	0.12-200KW
Output torque	3.5-21700N.m
Output speed	5-352rpm
Mounting type	Foot mounted, foot mounted with solid shaft, output flange mounted, hollow shaft mounted, B5 flange mounted with hollow shaft, foot mounted with hollow shaft, B14 flange mounted with hollow shaft, foot mounted with splined hole, foot mounted with shrink disk, hollow shaft mounted with anti-torque arm.
Input Method	Flange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor
Brake Release	HF-manual release(lock in the brake release position), HR-manual release(automatic braking position)
Thermistor	TF(Thermistor protection PTC thermistor) TH(Thermistor protection Bimetal swotch)
Mounting Position	M1, M2, M3, M4, M5, M6
Type	F37-F157
Output shaft dis.	25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm, 120mm
Housing material	HT200 high-strength cast iron from R37,47,57,67,77,87
Housing material	HT250 High strength cast iron from R97 107,137,147, 157,167,187
Heat treatment technology	carbonitriding and hardening treatment
Efficiency	92%-94%
Lubricant	VG220
Protection Class	IP55, F class

Model of F Series Gearmotor:

Solid shaft output type	F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 reducer
Solid shaft with flange output type	FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127, FA157 reducer
Hollow shaft output type	FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 reducer
Hollow shaft with flange output type	FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127 reducer, FAF157 reducer.

Material of F Series Right Angle Parallel Shaft Helical Gearmotor Reducer:

1. Box body: HT250 high-strength cast iron, injection-shaped inner cavity, effectively reduces parts wear；

2. Gear: 20CrMo alloy steel, carbon-nitrogen co-infiltration treatment (maintain tooth surface hardness HRC60 after fine grinding)；

3. Flat key: 45 steel, surface hardness HRC50.

Applications of F Series Right Angle Parallel Shaft Helical Gearmotor Reducer:

The F Series Right Angle Parallel Shaft Helical Gearmotor Reducer is widely applied to the light industry,

food, beer & beverage, chemistry, escalator, automatic storage equipment, construction machinery, steel metallurgy, environmental protection, powerplant, coal, mining, paper, board, stage equipment, automobile, ports (airport and dock), and tobacco machinery, etc, winning perfect praise around the globe.

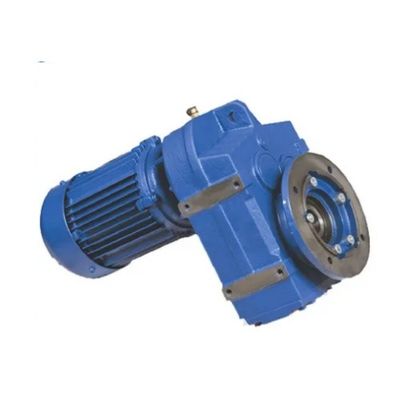

High Precision F Series Parallel Helical Gearbox For Stirring Machinery 2

Packaging:

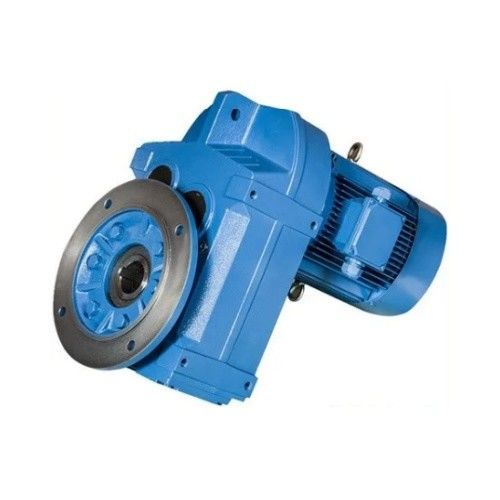

High Precision F Series Parallel Helical Gearbox For Stirring Machinery 3

FAQ:

1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.

2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher

3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
