Heating Roller
Created with Pixso. High Efficient Tungsten Carbide Corrugating Roller with Micro Hardness HV900-1250 and Coating Thickness 0.06-0.07mm
  • name
  • name
  • name

High Efficient Tungsten Carbide Corrugating Roller with Micro Hardness HV900-1250 and Coating Thickness 0.06-0.07mm

Brand Name: HUATAO
Model Number: CORRUGATED ROLLER
MOQ: 1 PC
Price: 2000USD/pc-5000USD/pc
Delivery Time: 5-8 Weeks
Payment Terms: L/C,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Features:
Coating, Embossing
Product Name:
Tungsten Carbide Corrugating Roller High Efficient High Precision Grinding
Key Words:
Corrugated Roller, Corrugating Roller, Single Facer Roller
Coating Thickness:
0.06 And 0.07mm Tungsten Coating Thickness
Material:
Special 48CrMo Alloy Steel Fine Forgings
Surface Plating:
Micro Hardness HV900-1250
Combination Hardness:
>75MPa
Hardness:
>HRC58
Packaging Details:
Wooden Box
Supply Ability:
100 PCS/Year
Highlight:

Tungsten Carbide corrugating roller

,

High Precision corrugating roller

,

Grinding corrugating roller

Product Description

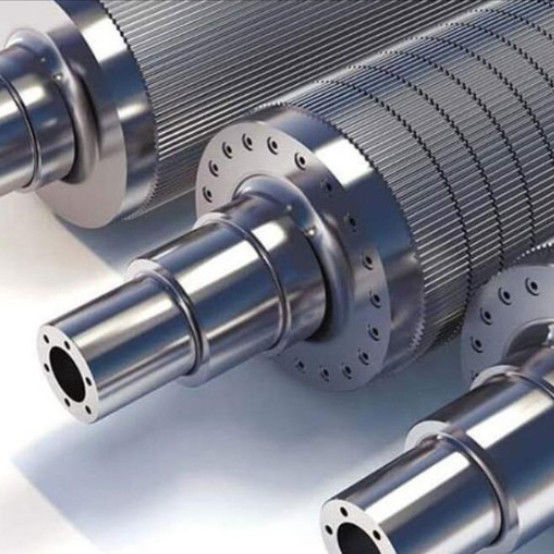

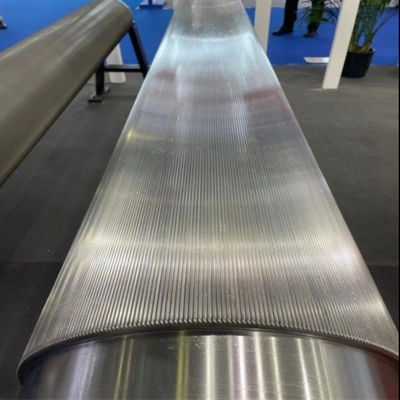

Tungsten Carbide Corrugating Roller - High Efficiency & Precision Grinding
Product Description
Our tungsten carbide corrugating roller combines advanced manufacturing technology with high precision grinding and carbide-tungsten coating, significantly extending service life while maintaining economic feasibility in production.
Key Features
  • Constructed from 48CrMo alloy steel forgings for superior strength
  • Medium frequency quenching achieves hardness exceeding HRC60 with 7mm depth
  • Utilizes imported tungsten carbide powder and Praxair JP8000 HVOF system
  • Abrasion-resistant tungsten carbide coating (50-60 micrometer thickness)
  • 3x longer lifespan than chrome-plated rolls at less than twice the cost
  • Rigorous quality control throughout production with ISO9001 certification
Technical Specifications
Product Name Corrugating Rolls
Material Special 48CrMo alloy steel fine forgings
Hardness HRC58
Coating Thickness 0.06-0.07mm Tungsten Coating
Surface Plating Micro hardness HV900-1250
Combination Hardness >75MPa
Visible Optical Porosity <1%
Quenching Layer Depth 5-7mm
High Efficient Tungsten Carbide Corrugating Roller with Micro Hardness HV900-1250 and Coating Thickness 0.06-0.07mm 0
About Huatao Group
Founded in 2008, Huatao Group is a leading manufacturer of industrial rollers with over 15 years of experience serving the paper, corrugated board, rubber, plastic, and nonwoven fabric industries.
Our Product Range
  • Paper Industry: Forming rollers, vacuum couch rollers, dandy rollers, press rollers, dryer cylinders, and more
  • Plastic & Rubber: Chill rollers, MDO rollers, corona treatment rollers, carbon fiber rollers, and coating drums
  • Nonwoven Fabric: Cylinder rollers, doffer rollers, embossing rollers, and cooling rollers
With a commitment to innovation and quality, our products are exported to over 96 countries. We understand each customer's unique requirements and match them with the optimal manufacturing solution from our network of specialized factories. Our goal is to provide products that give customers complete confidence in their performance and reliability.
