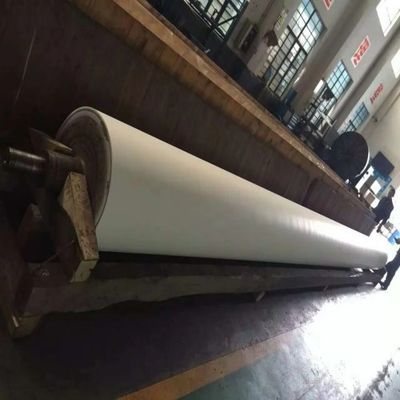

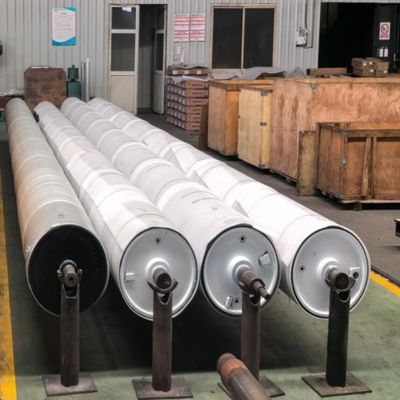

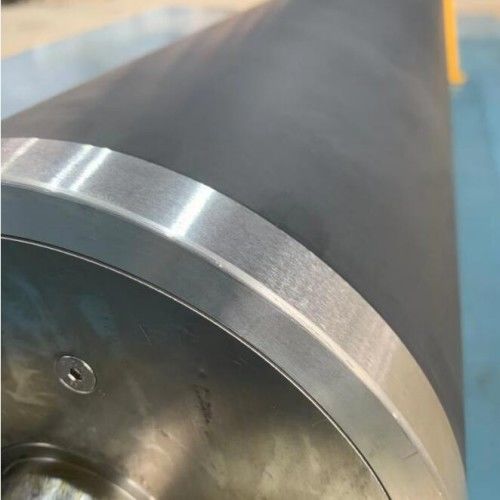

MDO Rubber Roller and Nip Roller for Biaxially Oriented Plastic Film Production Line with 13000mm Length and Up to 600m/min Speed

Name: MDO Rubber Roller and Nip Roller for Biaxially Oriented Plastic Film Production Line with 13000mm Length and Up to 600m/min Speed
Brand: SHIJIAZHUANG HUATAO IMPORT AND EXPORT TRADE CO., LTD.
SKU: RUBBER ROLLER
Price: 3,500.00 USD
Availability: InStock

Brand Name:	HUATAO
Model Number:	RUBBER ROLLER
MOQ:	1 Pc
Price:	2000USD/pc-5000USD/pc
Delivery Time:	1-3 Months
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Product Name:

MDO Rubber Roller For Biaxially Oriented Plastic Film Production Line

Key Words:

Water Removal Nip Roller, MDO Nip Roller, Corona Roller, Corona Nip Roller

Rubber Material:

Synthetic Rubber, EPDM, PU, Etc

Shell Material:

45# Steel, Q345B, Etc

Application:

For BOPP, BOPET Film Line

Rubber Color:

White, Red, Black

Maximum Face Length:

13000mm

Maximum Speed:

Up Tp 600m/min

Packaging Details:

Wooden Cases

Supply Ability:

10000 Pcs/Year

Highlight:

mdo rubber roller

biaxially oriented rubber roller

Plastic Film Rubber Roller

Product Description

MDO Rubber Roller For Biaxially Oriented Plastic Film Production Line

Rubber Roller Basis Information

Biaxially oriented produced的行film, generally the first machine direction orientation and then transverse direction orientation. The basic process is as follows:

Raw material mix: The main raw material required for the production of BOPP film is Mylar masterbatch slice. Polyester chips, also known as polyethylene terephthalate (PET), polyester film masterbatch chips contain silica, titanium dioxide, calcium carbonate and other substances.
Melt extrusion: In the production process of polyester film, it must go through the melt extrusion process. The process equipment used includes extruders,menting pumps and filters.
Casting system: The casting system consists of a die head, a cold roll and an attachment device for the casting sheet. Die head is the key part affecting the thickness and uniformity of the casting.
isse Strapping: MDO (Machine Direction Orientation): The process is processed by rollers, realizing orientation by using the speed difference between rollers. The machine is composed of snareheating roller, MDO stretching roller, MDO nip roller, etc.
TDO (Transverse Direction Orientation): Another important process in BOPP film production, mainly completed by the TDO machine with complex structure including oven, clamp, chain, guide rail, and lubrication system.
What Kind of Rubber Rolls We Can Supply

Huatao starts from the roller core structure and its corresponding processing technology to optimize user requirements. We can supply all rubber rollers required for BOPP film production line including:
fresh
Water removal roller
MDO nip roller
Corona roller
Corona nip roller
PRS product nip roller
Winding roller (contact roller, tracking roller)
Spreader roller
Slitter roller

MDO Nip Roller Specifications

Product name	MDO Nip roller
Shell material	45# steel
Ruber material	Silicon Rubber, HNBR
Rub hardness	60-80 Shore A

About Us

Huatao Group was founded in 2008. We are a professional and leading supplier of various rollers for paper machine, corrugator, rubber & plastic industry, nonwoven fabric industry over 15 years of experience.

Paper Industry:

< Eck class="pd-text">Plasticastic & Rubber industry: chill roller, MDO preheating roller, MDO nip roller, MDO stretching roller, PRS cooling roller, corona treater roller, corona treatment nip roller, flame treatment roller, CFRP contact roller, CFRP tension roller, CFRP nip roller, winding core, coating drum, cooling drum, spreader roller, anilox roller, calender roller, embossing roller.

Nonwoven fabric industry: cylinder roller, doffer roller, CFRP guide roller,-embossing roller, cooling roller, spreader roller.

With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry and our products have been exported to more than 96 countries.
