Suction Roller
Created with Pixso. Stainless Steel Suction Pick Up Roll with 400-1200mm Diameter and 2000-9000mm Face Length for Paper Machine
  • name
  • name
  • name

Stainless Steel Suction Pick Up Roll with 400-1200mm Diameter and 2000-9000mm Face Length for Paper Machine

Brand Name: HUATAO
Model Number: SUCTION PICK PU ROLL
MOQ: 1 Pc
Price: 2000USD/pc-5000USD/pc
Delivery Time: 2-3 Months
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO
Product Name:
Suction Pick Up Roll
Key Words:
Suction Pick Up Roll, Suction Roll, Vacuum Suction Roll, Suction Transfer Roll
Shell Material:
SS304, SS316, SS316L, Douplex Stainless Steel
Shaft Material:
Cast Steel Or QT500-7
Suction Box Material:
SS304
Gear Box Material:
Bronze
Diameter:
400-1200 Mm
Face Length:
2000-9000mm
Speed:
Up To 2000m/min
Application:
Paper Machine Suction Pick Up Roll
Packaging Details:
Wooden Case
Supply Ability:
1000 Pcs/Year
Highlight:

machine press roller

,

paper machine press roller

,

machine suction roller

Product Description
Stainless Steel Pick Up Suction Roller For Paper Machine Press Roller

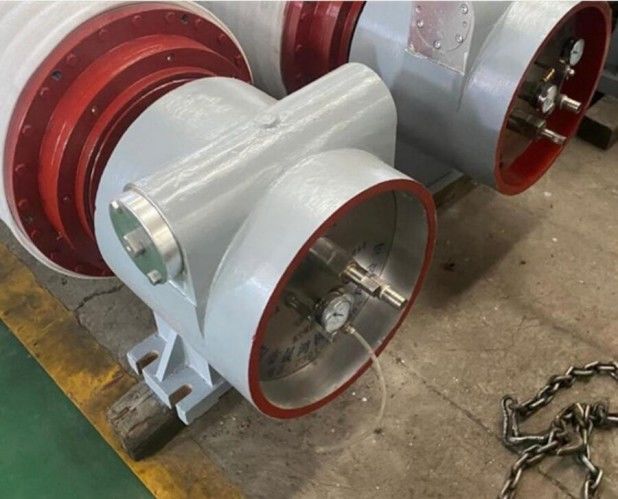

Paper Machine Suction Pick Up Roll Stainless Steel
Suction pick up roll is one of the main paper web transfer parts in press section of paper machine. The roller shell is precision machined from SUS304 stainless steel with surface openings arranged in a double helix pattern, achieving an opening rate exceeding 18% for enhanced shell strength.
Key Features
  • Special seal with excellent self-lubrication and wear resistance

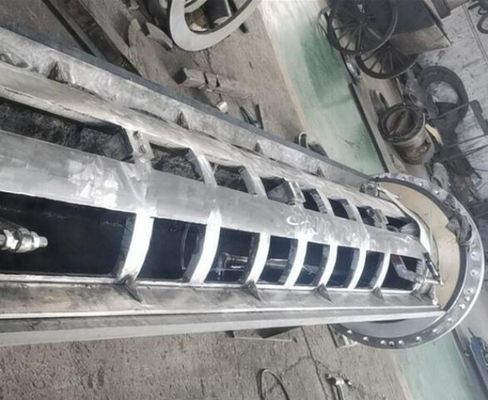

  • Inner vacuum chamber welded with SUS304 stainless steel plate
  • Nylon roller at vacuum chamber bottom for easy installation/disassembly
  • Reduces wet paper web breakage rate in press section
  • Improves paper machine operational efficiency
  • Custom designs available to meet specific customer requirements
Technical Specifications
Parameter Specification
Shell Material SS304, SS316, SS316L, Duplex stainless steel
Shaft Cast steel or QT500-7
Suction Box SS304
Gear Box Bronze
Diameter 400-1200mm
Face Length 2000-9000mm
Speed Up to 2000m/min
Advanced Features
  • Premium shell material and covering options
  • Gun drilling technology
  • Internal spray system for perforation flushing
  • Temperature sensors for internal bearings
  • Vibration diagnostics sensors for all bearings
  • Comprehensive storage and maintenance instructions
About Huatao Group
Founded in 2008, Huatao Group is a professional supplier with over 15 years experience manufacturing rollers for paper machines, corrugators, and rubber/plastic industries. Our products are exported to more than 96 countries worldwide.
Industry Applications
Paper Industry: Forming rollers, vacuum couch rollers, dandy rollers, press rollers, dryer cylinders, calender rollers, and more.
Plastic & Rubber: Chill rollers, MDO rollers, corona treatment rollers, CFRP rollers, coating drums, and cooling drums.
Nonwoven Fabric: Cylinder rollers, doffer rollers, CFRP guide rollers, embossing rollers, and cooling rollers.
We are committed to innovation, reliability, and customer satisfaction, offering customized solutions to meet specific requirements while maintaining strict quality control throughout manufacturing.
