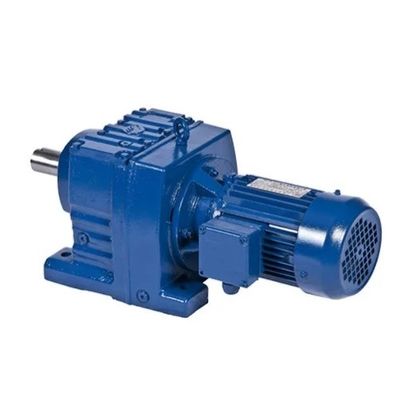

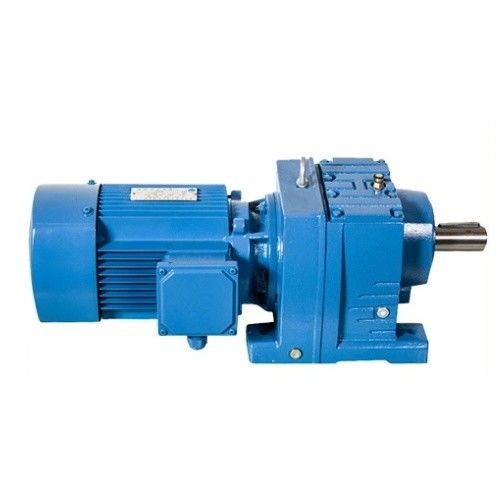

High Load Helical Gear Motor Reducer R97 Series With Foot Mounted

High Load Helical Gear Motor Reducer R97 Series With Foot Mounted

Brand Name:	HUATAO
Model Number:	HT
MOQ:	1
Price:	Negotiatable
Delivery Time:	25 days
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, TUV

Product Name:

K Series Helical Gear Spiral Bevel Gearbox

Key Words:

K Series Gearmotor Reducer

Application:

Industrial Machinery

Color:

Basis On Customer Request

Customized:

Available

Package:

Plywood Case

HS Code:

8483409000

Production Capacity:

5000PCS/Per Month

Packaging Details:

Plywood Case

Supply Ability:

5000PCS/Per Month

Highlight:

Helical gear motor reducer

gear motor reducer R97

R97 gear reduction motor

Product Description

R97 Series High Load Helical Gearmotor Reducer with Foot Mounted

R Series High Torque Variator Gearbox Helical Reducer is widely used in metallurgical mining, petrochemical industry, building materials machinery, railway vehicles, port ships, textile printing and dyeing, food packaging, paper printing, lifting and conveying, logistics loading and unloading, agricultural, animal husbandry and fishery machinery, light industry leather and other light and heavy industrial machinery transmission fields.

Model of R Series High Torque Variator Gearbox Helical Reducer

Solid shaft output type	RX37 reducer, RX57 reducer, RX67 reducer, RX77 reducer, RX87 reducer, RX97 reducer, RX107 reducer, RX127 reducer
Solid shaft with flange output type	RXF37 reducer, RXF57 reducer, RXF67 reducer, RXF77 reducer, RXF87 reducer, RXF97 reducer, RXF107 reducer, RXF127 reducer
Hollow shaft output type	R37 reducer, R47 reducer, R57 reducer, R67 reducer, R77 reducer, R87 reducer, R97 reducer, R107 reducer, R137 reducer, R147 reducer, R167 reducer
Hollow shaft with flange output type	RF37 reducer, RF47 reducer, RF57 reducer, RF67 reducer, RF77 reducer, RF87 reducer, RF97 reducer, RF107 reducer, RF137 reducer, RF147 reducer, RF167 reducer

Material of R Series High Load Helical Gearmotor Reducer with Foot Mounted

1. Box body: HT250 high-strength cast iron, injection-shaped inner cavity, effectively reduces parts wear；

2 . Gear: 20CrMo alloy steel, carbon-nitrogen co-infiltration treatment (maintain tooth surface hardness HRC60 after fine grinding)；

3 . Flat key: 45 steel, surface hardness HRC50.

R97_Series_Helical_Geared_Motor_with_Foot_Mounted_-_Helical_Geared_Motor_and_Geared_Motor.jpg

Technical parameters of R97 Series High Load Helical Gearmotor Reducer with Foot Mounted:

Ratio	3.41-289.74
Input power	0.12-160KW
Output torque	61-23200N.m
Output speed	5-415rpm
Mounting type	Foot mounted, flange mounted, foot and flange mounted, single-stage foot mounted, single stage flange mounted, Flange-mounted with extended bearing hub
Input Method	Flange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor
Brake Release	HF-manual release(lock in the brake release position), HR-manual release(automatic braking position)
Thermistor	TF(Thermistor protection PTC thermistor) TH(Thermistor protection Bimetal switch)
Mounting Position	M1, M2, M3, M4, M5, M6
Type	R17-R167
Output shaft dis.	20mm, 25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm, 120mm
Housing material	HT200 high-strength cast iron from R37,47,57,67,77,87
Housing material	HT250 High strength cast iron from R97 107,137,147,157,167,187
Heat treatment technology	carbonitriding and hardening treatment
Efficiency	92%-97%
Lubricant	VG220
Protection Class	IP55, F class

High Load Helical Gear Motor Reducer R97 Series With Foot Mounted 1

Packaging:

High Load Helical Gear Motor Reducer R97 Series With Foot Mounted 2

FAQ:

1. Can you customize it according to our requirements?
We can design nonstandard products according to the customer's drawing and sample.

2. What's your product range?
speed reducer, gearbox, gear motor, pump, crusher

3. What is the reason why we buy from you?
With over 20 years of production experience and credibility. With a professional engineering team, advanced technology production, and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken
