Worm Gearboxes
Created with Pixso. NMRV Series Worm Gear Reducer Gearbox with Compact Design High Efficiency and Versatile for Industrial Machinery
  • name
  • name
  • name

NMRV Series Worm Gear Reducer Gearbox with Compact Design High Efficiency and Versatile for Industrial Machinery

Brand Name: HUATAO
Model Number: HT
MOQ: 1
Price: Negotiatable
Delivery Time: 25 days
Payment Terms: T/T,L/C,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO, TUV
Product Name:
NMRV Series Worm Gear Reducer Gearboxes
Key Words:
Nmrv Series Worm Gear Reducer
Application:
Industrial Machinery
Color:
Basis On Customer Request
Customized:
Available
Package:
Plywood Case
HS Code:
8483409000
Production Capacity:
5000PCS/Per Month
Packaging Details:
Plywood Case
Supply Ability:
5000PCS/Per Month
Highlight:

nmrv series worm gear reducer gearbox

,

industrial worm reducer gearbox

,

industrial worm gear reducer gearbox

Product Description
NMRV Series Worm Gear Reducer Gearbox For Industrial Machinery
NMRV Series Worm Gear Reducer Gearboxes are widely used in various industrial applications due to their compact design, high efficiency, and versatility.
Key Characteristics
  1. Large output torque
  2. Safe, reliable, economical, and durable
  3. Stable transmission, quiet operation
  4. High heat-radiating efficiency, high carrying ability
  5. Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio
  6. Widely used in food processing, ceramics, chemical manufacturing, packaging, printing, dyeing, and plastics industries
Technical Specifications
Parameter Specification
Motor input power 0.06kw-15kw
Output torque 4-2320N.M
Speed ratio 5/10/15/20/25/30/40/50/60/80/100
IEC motor input flange 56B14/71B14/80B5/90B5...
Materials and Construction
  1. NMRV025-NMRV090: Aluminium alloy housing
  2. NMRV110-150: Cast iron housing
  3. Bearing: NSK bearing & Homemade bearing
  4. Lubricant: Synthetic & Mineral
  5. Worm mandrel material: HT250
  6. Worm ring gear material: ZQSn10-1
  7. High-quality homemade bearings with NAK oil seals and premium lubricant
Operation & Maintenance
  1. Initial lubricant replacement after 200-400 hours of operation
  2. Regular oil change every 4000 hours
  3. Pre-filled with lubricant oil upon delivery
  4. Regular lubrication level checks required
Available Colors
Blue / Light blue or Silvery White
Quality Assurance
  1. 1-year quality guarantee
  2. ISO9001:2000 certified
  3. Each product undergoes rigorous testing before shipment

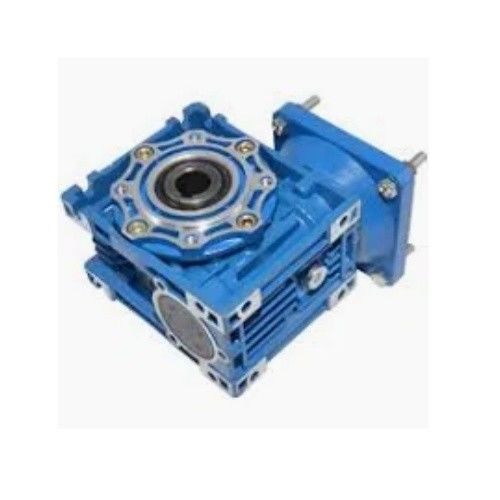

NMRV Series Worm Gear Reducer Gearbox with Compact Design High Efficiency and Versatile for Industrial Machinery 0

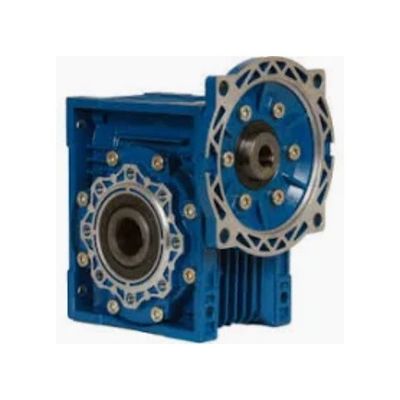

NMRV Series Worm Gear Reducer Gearbox with Compact Design High Efficiency and Versatile for Industrial Machinery 1
Packaging
NMRV Series Worm Gear Reducer Gearbox with Compact Design High Efficiency and Versatile for Industrial Machinery 2
Frequently Asked Questions
Can you customize it according to our requirements?
Yes, we can design nonstandard products according to the customer's drawing and sample.
What's your product range?
Speed reducer, gearbox, gear motor, pump, crusher.
Why should we buy from you?
With over 20 years of production experience and credibility. We have a professional engineer team, advanced technology production, and skilled workers. We specialize in reducer production and can undertake map sample processing business.
